ACTIVE
Number of channels |
2 |
Technology family |
HC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Clock frequency (max) (MHz) |
29 |
IOL (max) (mA) |
5.2 |
IOH (max) (mA) |
-5.2 |
Supply current (max) (µA) |
40 |
Features |
Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Catalog |
PDIP (N)-14-181.42 mm² 19.3 x 9.4

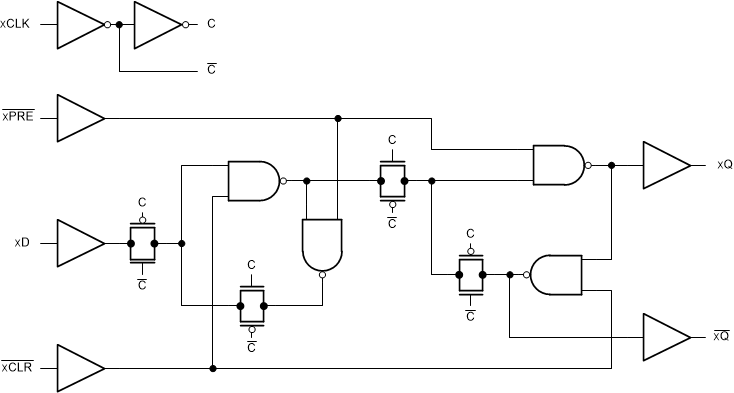

The SNx4HC74 devices contain two independent D-type positive-edge-triggered flip-flops with asynchronous preset and clear pins for each.
