DLP991UUV
  • DLP991UUV
  • DLP991UUV

DLP991UUV

ACTIVE

0.99-inch high-speed 2176 x 4096 UV type-A DLP® digital micromirror device (DMD)

Texas Instruments DLP991UUV Product Info

1 April 2026 3

Parameters

Illumination wavelength (min) (nm)

343

Illumination wavelength (max) (nm)

410

Array diagonal (in)

0.99

Micromirror array size

4096 x 2176

Micromirror pitch (mm)

0.0054

Rating

Catalog

Operating temperature range (°C)

-40 to 90

Package

DLP-TYPEA.9 (FLV)-321-1777.4656 mm² 42.16 x 42.16

Features

  • High resolution 4096 × 2176 micromirror array
    • > 8.9 million micromirrors
    • 5.4µm micromirror pitch
    • 0.99" micromirror array diagonal
    • ±12° micromirror tilt (relative to flat state)
    • Designed for corner illumination

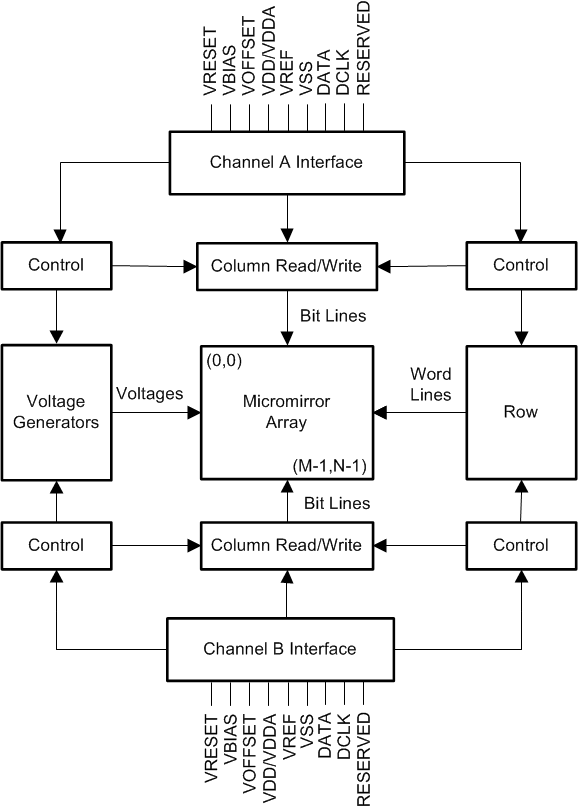

    • Integrated micromirror driver circuitry
  • Designed to steer UV wavelengths from 343nm to 410nm
    • 97% window transmission (per window pass)
    • 88% micromirror reflectivity
    • 91% average diffraction efficiency (343nm to 410nm with f/3 illumination and f/2.4 projection)
    • 90% on-state array fill factor
  • High resolution 4096 × 2176 micromirror array
    • > 8.9 million micromirrors
    • 5.4µm micromirror pitch
    • 0.99" micromirror array diagonal
    • ±12° micromirror tilt (relative to flat state)
    • Designed for corner illumination
    • Integrated micromirror driver circuitry
  • Designed to steer UV wavelengths from 343nm to 410nm
    • 97% window transmission (per window pass)
    • 88% micromirror reflectivity
    • 91% average diffraction efficiency (343nm to 410nm with f/3 illumination and f/2.4 projection)
    • 90% on-state array fill factor

Description

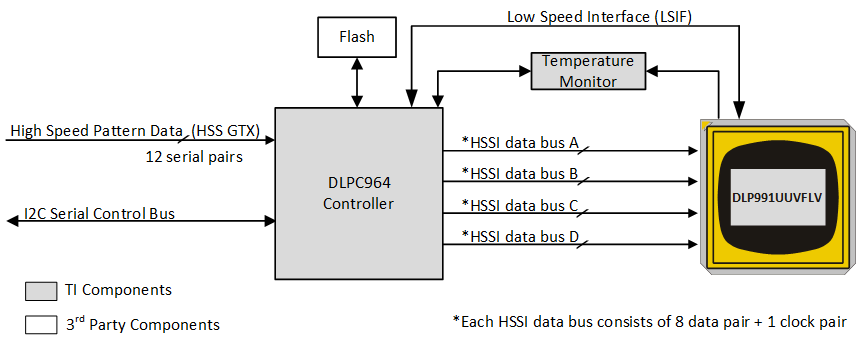

Featuring over 8.9 million micromirrors, the high-resolution DLP991UUV digital micromirror device (DMD) is a spatial light modulator (SLM) that modulates the amplitude, direction, and/or phase of incoming light. This advanced light control technology has numerous applications in the industrial, medical, and consumer markets. The streaming nature of the DLP991UUV DMD and the DLPC964 controller make the device exceptional for high-speed continuous data streaming for direct imaging (LDI) applications. The DMD enables large 3D Print build sizes and ultra-fine resolutions for a variety of 3D printing applications. The high resolution provides a direct benefit to the scanning of larger objects in 3D machine vision applications.
