ACTIVE
Technology family |
HC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Number of channels |
8 |
IOL (max) (mA) |
6 |
Supply current (max) (µA) |
80 |
IOH (max) (mA) |
-6 |
Input type |
Standard CMOS |
Output type |
3-State |
Features |
Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

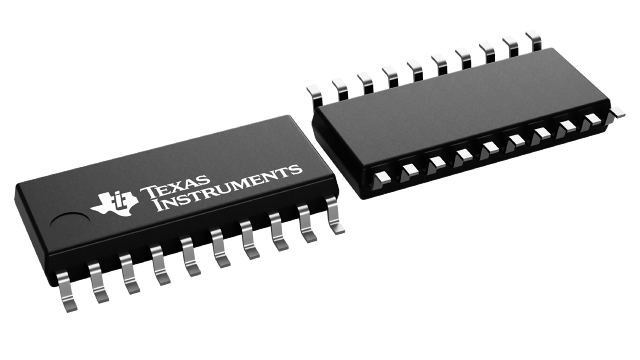

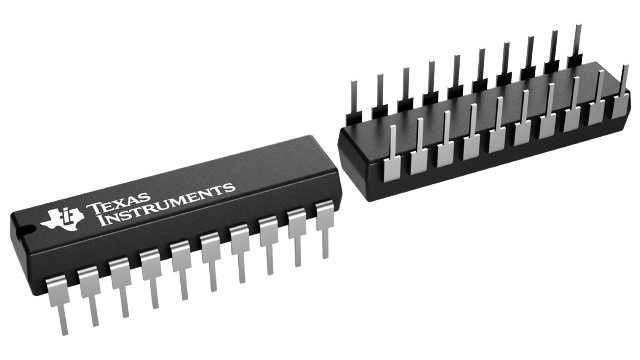

PDIP (N)-20-228.702 mm² 24.33 x 9.4
These octal buffers and line drivers feature the performance of the SNx4HC541 devices and a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed circuit board layout.
The 3-state outputs are controlled by a two-input NOR gate. If either output-enable (OE1 or OE2) input is high, all eight outputs are in the high-impedance state. The SNx4HC541 devices provide true data at the outputs.
