0
ACTIVE
Number of channels |
2 |
Output type |
Open-collector, Open-drain |
Propagation delay time (µs) |
0.025 |
Vs (max) (V) |
36 |
Vs (min) (V) |
5 |
Rating |
Space |
Features |
Strobe |
Iq per channel (typ) (mA) |
4 |
Vos (offset voltage at 25°C) (max) (mV) |
4 |
Rail-to-rail |
No |
Operating temperature range (°C) |
-55 to 125 |

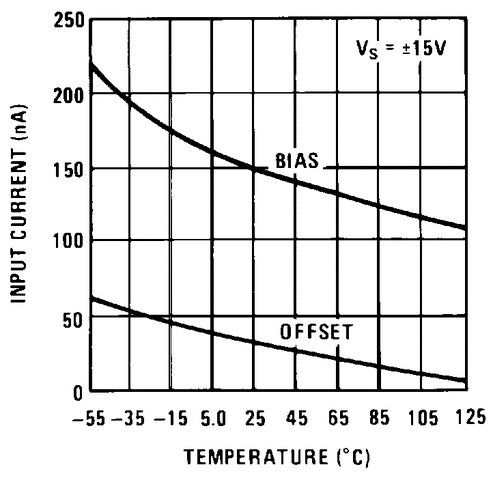

Input bias current (±) (max) (nA) |
500 |
VICR (max) (V) |
33 |
VICR (min) (V) |
3 |

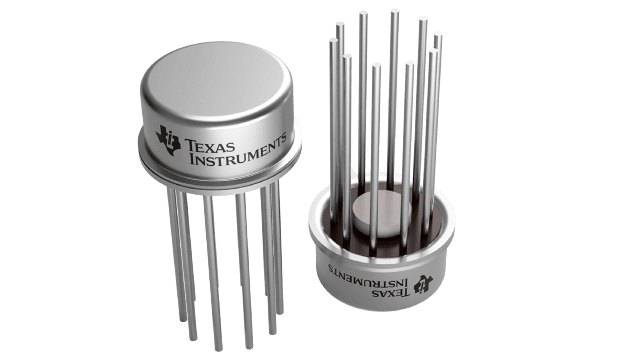

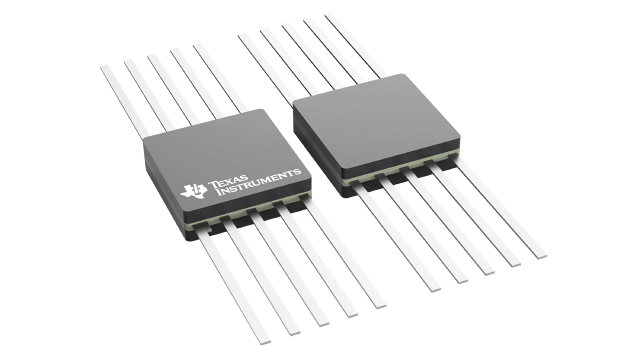

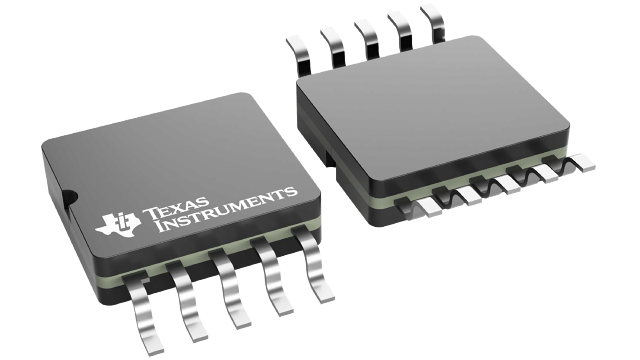

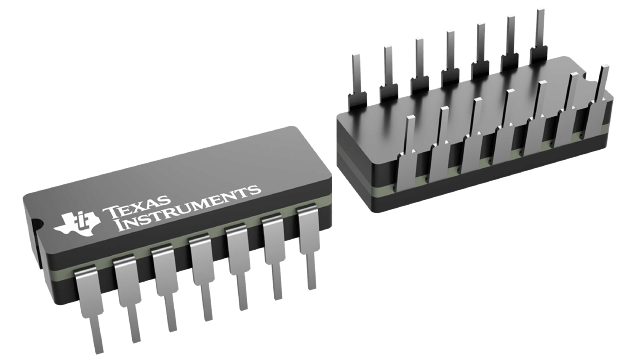

CDIP (J)-14-130.4652 mm² 19.56 x 6.67
All trademarks are the property of their respective owners.

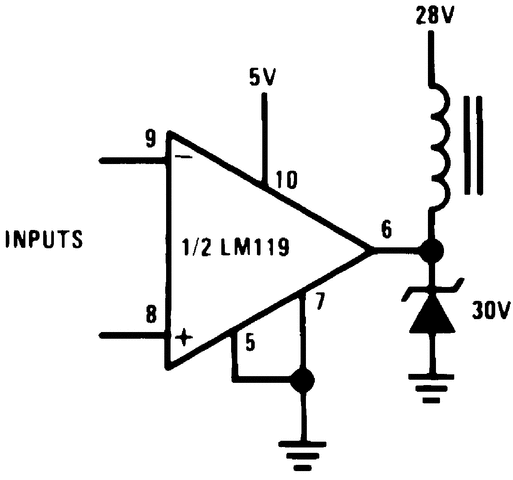

The LM119 is a precision high speed dual comparator fabricated on a single monolithic chip. It is designed to operate over a wide range of supply voltages down to a single 5V logic supply and ground. Further, it has higher gain and lower input currents than devices like the LM710. The uncommitted collector of the output stage makes the LM119 compatible with RTL, DTL and TTL as well as capable of driving lamps and relays at currents up to 25 mA.
Although designed primarily for applications requiring operation from digital logic supplies, the LM119 is fully specified for power supplies up to ±15V. It features faster response than the LM111 at the expense of higher power dissipation. However, the high speed, wide operating voltage range and low package count make the LM119 much more versatile than older devices like the LM711.
