0
ACTIVE
Configuration |
Parallel-in, Serial-out |
Bits (#) |
8 |
Technology family |
HC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Clock frequency (MHz) |
24 |
IOL (max) (mA) |
5.2 |
IOH (max) (mA) |
-5.2 |
Supply current (max) (µA) |
80 |
Features |
Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Catalog |

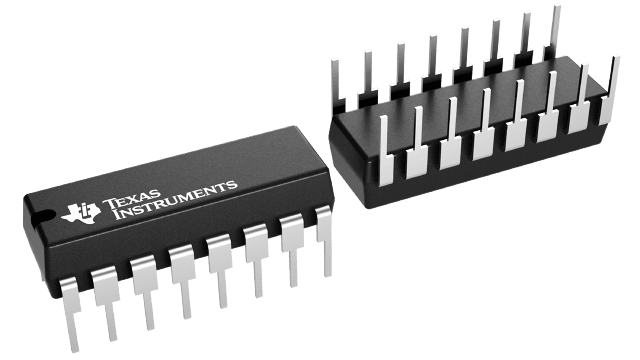

PDIP (N)-16-181.42 mm² 19.3 x 9.4
The SNx4HC166 device contains an 8-bit shift register with one serial input and eight parallel-load inputs.
