TRS202E

ACTIVE

5-V dual channel 120kbps RS-232 line driver/receiver with +/-9V output & +/-15-kV IEC-ESD protection

Texas Instruments TRS202E Product Info

1 April 2026 3

Parameters

Drivers per package

2

Receivers per package

2

Logic voltage (min) (V)

5

Data rate (max) (Mbps)

0.12

Main supply voltage (nom) (V)

5

ESD HBM (kV)

15

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Vout (typ) (V)

9

Package

PDIP (N)-16-181.42 mm² 19.3 x 9.4

Features

  • IEC61000-4-2 (Level 4) ESD protection for RS-232 bus pins:
    • ±8kV Contact discharge
    • ±15k-V Air-gap discharge
    • ±15kV Human-body model
  • Meets or exceeds the requirements of TIA/EIA-232-F and ITU v.28 standards
  • Operates at 5V VCC supply
  • Operates Up to 120kbit/s
  • External capacitors: 4 × 0.1µF or 4 × 1µF
  • Latch-up performance exceeds 100mA per JESD 78, class II
  • IEC61000-4-2 (Level 4) ESD protection for RS-232 bus pins:
    • ±8kV Contact discharge
    • ±15k-V Air-gap discharge
    • ±15kV Human-body model
  • Meets or exceeds the requirements of TIA/EIA-232-F and ITU v.28 standards
  • Operates at 5V VCC supply
  • Operates Up to 120kbit/s
  • External capacitors: 4 × 0.1µF or 4 × 1µF
  • Latch-up performance exceeds 100mA per JESD 78, class II

Description

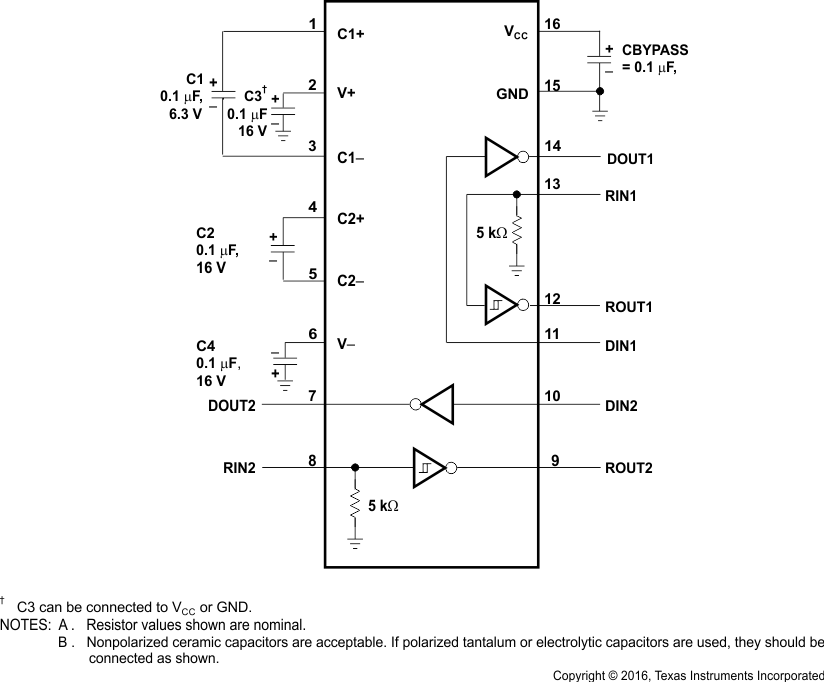

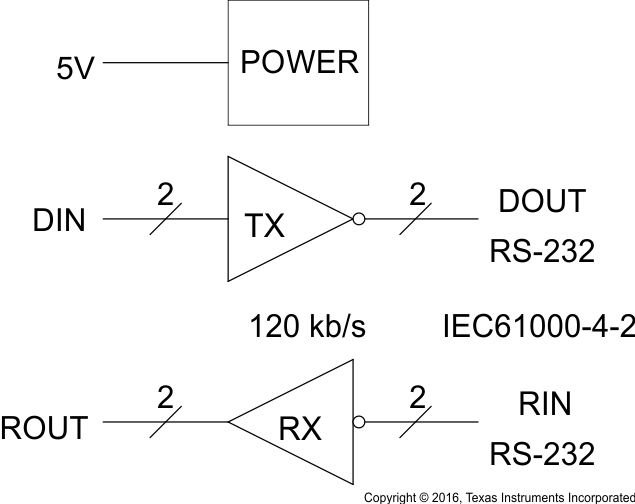

The TRS202E consists of two line drivers, two line receivers, and a dual charge-pump circuit. TRS202E has IEC61000-4-2 (Level 4) ESD protection pin-to-pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5V supply. The device operates at data signaling rates up to 120kbit/s and a maximum of 30V/µs driver output slew rate.
