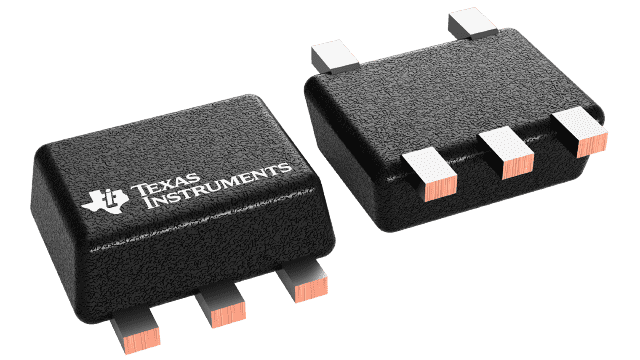

SN74AHC1G00
  • SN74AHC1G00
  • SN74AHC1G00
  • SN74AHC1G00
  • SN74AHC1G00
  • SN74AHC1G00

SN74AHC1G00

ACTIVE

Single 2-input, 2-V to 5.5-V NAND gate

Texas Instruments SN74AHC1G00 Product Info

1 April 2026 0

Parameters

Technology family

AHC

Supply voltage (min) (V)

2

Supply voltage (max) (V)

5.5

Number of channels

1

Inputs per channel

2

IOL (max) (mA)

8

IOH (max) (mA)

-8

Input type

Standard CMOS

Output type

Push-Pull

Features

Over-voltage tolerant inputs, Very high speed (tpd 5-10ns)

Data rate (max) (Mbps)

110

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

  • Operating range: 2 V to 5.5 V
  • Maximum tpd of 6.5 ns at 5 V
  • Low power consumption: maximum ICC of 10 µA
  • ±8-mA output drive at 5 V
  • Schmitt trigger action at all inputs makes the circuit tolerant for slower input rise and fall time
  • Latch-up performance exceeds 250 mA per JESD 17
  • Operating range: 2 V to 5.5 V
  • Maximum tpd of 6.5 ns at 5 V
  • Low power consumption: maximum ICC of 10 µA
  • ±8-mA output drive at 5 V
  • Schmitt trigger action at all inputs makes the circuit tolerant for slower input rise and fall time
  • Latch-up performance exceeds 250 mA per JESD 17

Description

The SN74AHC1G00 performs the Boolean function Y = A • B or Y = A + B in positive logic.

The SN74AHC1G00 performs the Boolean function Y = A • B or Y = A + B in positive logic.
