ACTIVE
Technology family |
AHC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
4 |
IOL (max) (mA) |
8 |
Supply current (max) (µA) |
40 |
IOH (max) (mA) |
-8 |
Input type |
Standard CMOS |
Output type |
3-State |
Features |
Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |

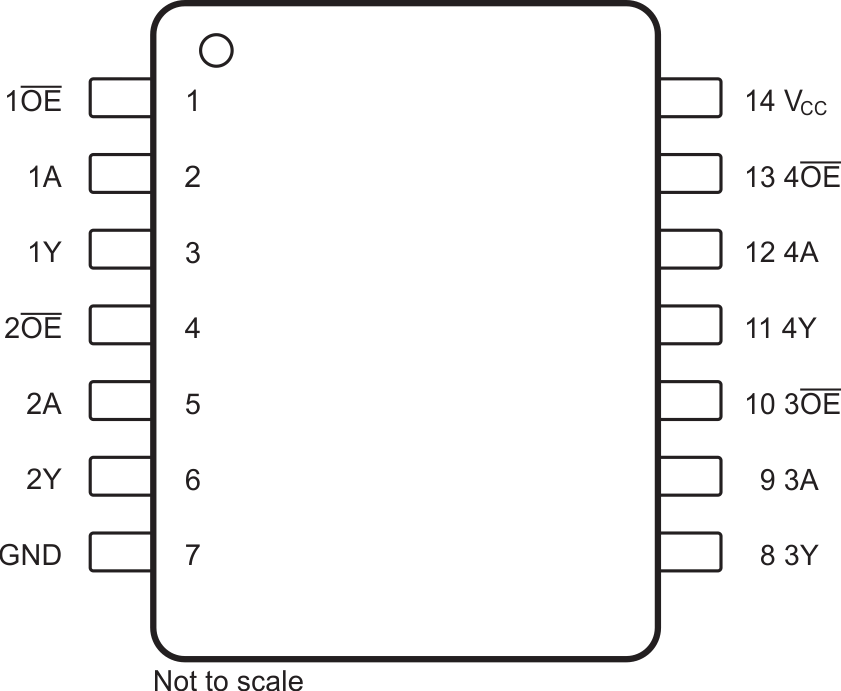

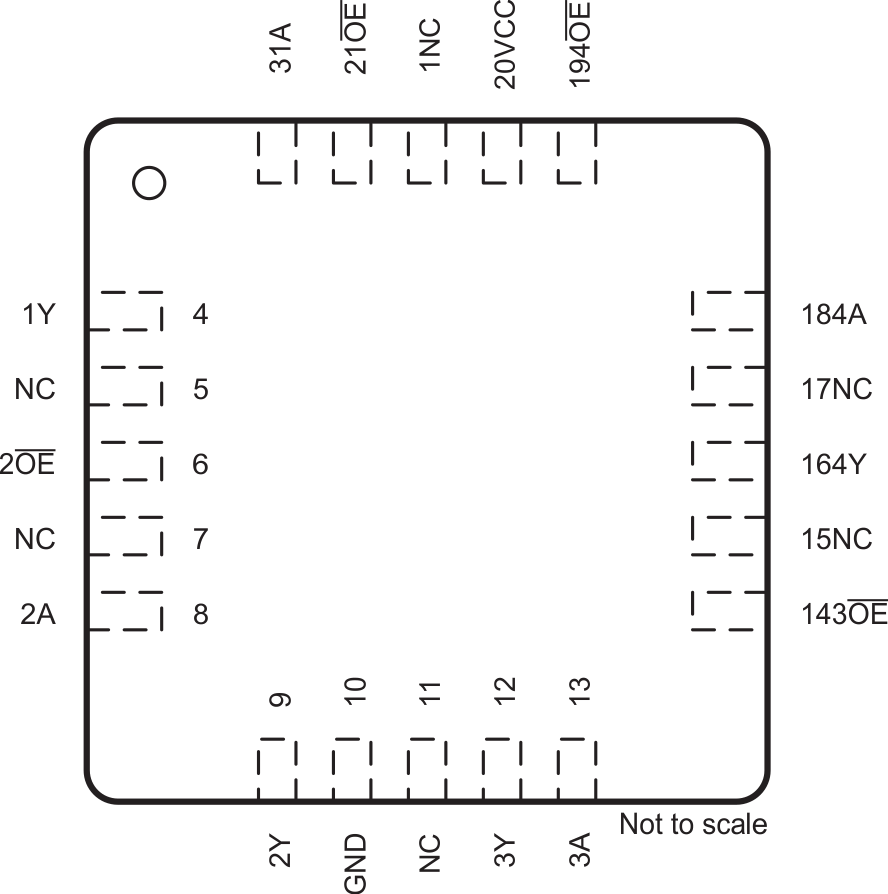

PDIP (N)-14-181.42 mm² 19.3 x 9.4

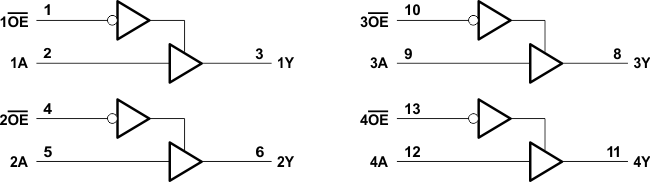

The SNx4AHC125 devices are quadruple bus buffer gates featuring independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable ( OE) input is high. When OE is low, the respective gate passes the data from the A input to its Y output.
To ensure the high-impedance state during power up or power down, OE must be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
