TMUXHS4446
  • TMUXHS4446
  • TMUXHS4446

TMUXHS4446

ACTIVE

USB-C 10-Gbps alternate mode 6 by 4 multiplexer/demultiplexer

Texas Instruments TMUXHS4446 Product Info

1 April 2026 4

Parameters

Protocols

DisplayPort, USB 3.2 Gen 1x2, USB 3.2 Gen 2x1, USB-C

Configuration

4:6

Number of channels

4

USB speed (Mbps)

10000

Supply voltage (max) (V)

3.6

Supply voltage (min) (V)

3

Ron (typ) (mΩ)

7500

Input/output voltage (min) (V)

0

Input/output voltage (max) (V)

2

Supply current (typ) (µA)

350

ESD HBM (typ) (kV)

2

Operating temperature range (°C)

-40 to 105

Off isolation (typ) (dB)

-60

OFF-state leakage current (max) (µA)

10

Turnoff time (disable) (max) (ns)

650

Turnon time (enable) (max) (ns)

620

Rating

Catalog

Package

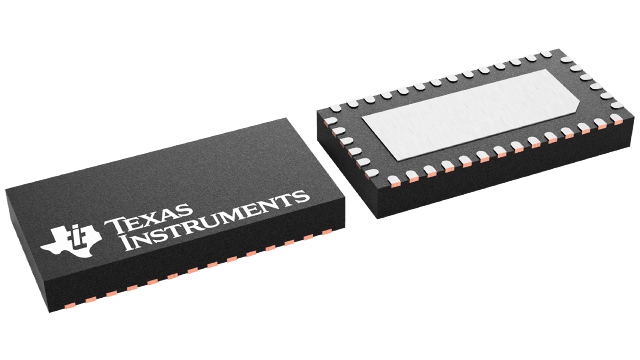

WQFN (RET)-40-18 mm² 6 x 3

Features

  • Passive bidirectional USB-C Alternate Mode Mux to switch between USB and DisplayPort signals
  • Supports USB 3.2 up to 10Gbps (Gen 2.0) and DisplayPort 2.1 up to 10Gbps per lane (UHBR10)
  • Compatible for Source/Host and Sink/Device applications
  • −3dB differential BW: 9.5GHz
  • Dynamic characteristics:
    • Insertion loss = −1.6dB at 5GHz
    • Return loss = −18dB at 5GHz
  • Supports common mode voltage (CMV) from 0V to 1.8V
  • Adaptive CMV tracking
  • 6V tolerant SBU pins to survive short-to-VBUS events
  • Can be configured through GPIO pins or I2C
  • Supports both 1.8V and 3.3V I2C
  • Single supply voltage VCC: 3.3V
  • Active power consumption: 340µA
  • Low standby power consumption: 0.5µA (pin mode)
  • Extended industrial temperature: −40°C to 105°C
  • Available in 3mm × 6mm QFN package
  • Passive bidirectional USB-C Alternate Mode Mux to switch between USB and DisplayPort signals
  • Supports USB 3.2 up to 10Gbps (Gen 2.0) and DisplayPort 2.1 up to 10Gbps per lane (UHBR10)
  • Compatible for Source/Host and Sink/Device applications
  • −3dB differential BW: 9.5GHz
  • Dynamic characteristics:
    • Insertion loss = −1.6dB at 5GHz
    • Return loss = −18dB at 5GHz
  • Supports common mode voltage (CMV) from 0V to 1.8V
  • Adaptive CMV tracking
  • 6V tolerant SBU pins to survive short-to-VBUS events
  • Can be configured through GPIO pins or I2C
  • Supports both 1.8V and 3.3V I2C
  • Single supply voltage VCC: 3.3V
  • Active power consumption: 340µA
  • Low standby power consumption: 0.5µA (pin mode)
  • Extended industrial temperature: −40°C to 105°C
  • Available in 3mm × 6mm QFN package

Description

The TMUXHS4446 is a high-speed bidirectional passive crosspoint switch or cossbar (Xbar). This device is used to switch between USB 3.2 Gen2 SuperSpeed and DisplayPort 1.4/2.1 (up to 10Gbps UHBR10) signals over a USB Type-C also known as USB-C interface. The device also provides switching for the low-speed SBU signals that are used for DisplayPort auxiliary channels. The TMUXHS4446 supports differential signaling with a common mode voltage (CMV) range of 0V to 1.8V and a differential amplitude from 0V to 1800mVpp. Adaptive CMV tracking enables the channel through the device to remain unchanged for the entire common-mode voltage range.

The dynamic characteristics of the TMUXHS4446 allows high-speed switching with minimum attenuation to the signal eye diagrams, and very little added jitter. The silicon design of the device is optimized for excellent frequency response at a higher frequency spectrum of the signals. The silicon signal traces and switch network of the TMUXHS4446 are matched for best intra-pair skew performance.

The TMUXHS4446 has an extended industrial temperature range (−40°C to 105°C) designed for many rugged applications, including industrial and high reliability use cases.
