ACTIVE
Number of full bridges |
1 |
Vs (min) (V) |
1.8 |
Vs ABS (max) (V) |
12 |
Peak output current (A) |
1.2 |
RDS(ON) (HS + LS) (mΩ) |
1000 |
Sleep current (µA) |
0.03 |
Control mode |
PWM |
Control interface |
Hardware (GPIO) |
Topology |
Integrated FET |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
WSON (DSG)-8-4 mm² 2 x 2
All trademarks are the property of their respective owners.

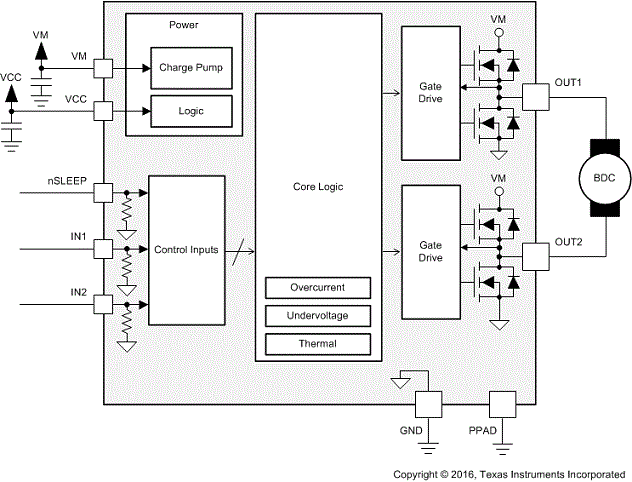

The DRV8837C device provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device can drive one DC motor or other devices like solenoids. The output driver block consists of N-channel power MOSFETs configured as an H-bridge to drive the motor winding. An internal charge pump generates needed gate drive voltages.
The DRV8837C device can supply up to 1 A of output current. The device operates on a motor power supply voltage from 0 to 11 V, and control logic can operate on 1.8-V to 5-V rails.
The DRV8837C device has a PWM (IN/IN) input interface.
Internal shutdown functions are provided for overcurrent protection, short circuit protection, undervoltage lockout, and overtemperature.
