ACTIVE
Configuration |
Serial-in |
Bits (#) |
8 |
Technology family |
ACT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Input type |
TTL-Compatible CMOS |
Output type |
3-State |
Clock frequency (MHz) |
92 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Supply current (max) (µA) |
2 |
Features |
Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Automotive |
TSSOP (PW)-16-32 mm² 5 x 6.4

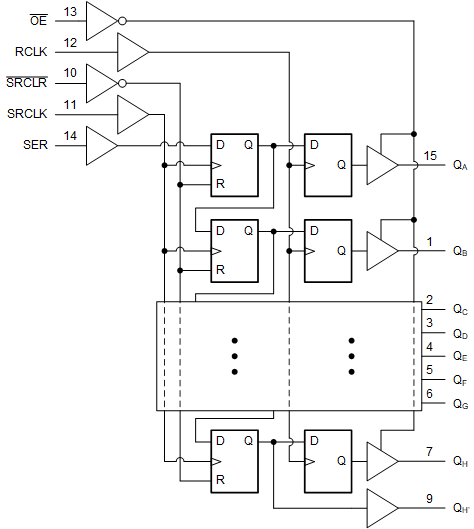

The SN74ACT595-Q1 device contains an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel outputs. Separate clocks are provided for both the shift and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and a serial output (QH) for cascading. When the output-enable (OE) input is high, the register outputs are in a high-impedance state. Internal register data is not impacted by the operation of the OE input.
