0
ACTIVE
Number of receivers |
4 |
Number of transmitters |
0 |
Duplex |
Half |
Supply voltage (nom) (V) |
5 |
Signaling rate (max) (Mbps) |
10 |
IEC 61000-4-2 contact (±V) |
None |
Fault protection (V) |
-11 to 14 |
Common-mode range (V) |
-7 to 7 |
Number of nodes |
32 |
Isolated |
No |
Supply current (max) (µA) |
15000 |
Rating |
Automotive, Catalog |
Operating temperature range (°C) |
-40 to 125 |

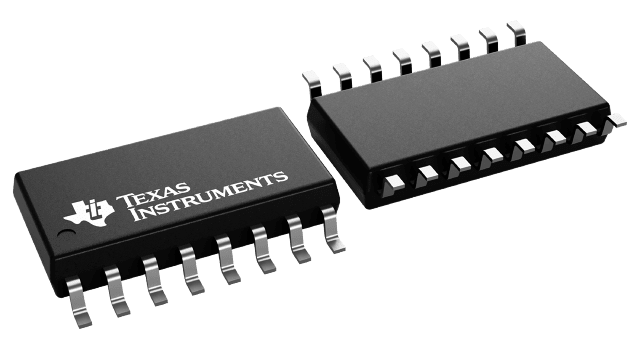

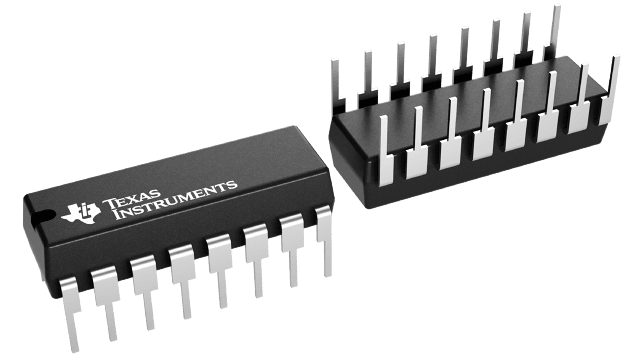

PDIP (N)-16-181.42 mm² 19.3 x 9.4

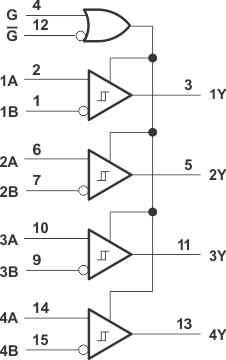

The AM26C32 device is a quadruple differential line receiver for balanced or unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs permit connection directly to a bus-organized system. Fail-safe design specifies that if the inputs are open, the outputs always are high. The AM26C32 devices are manufactured using a BiCMOS process, which is a combination of bipolar and CMOS transistors. This process provides the high voltage and current of bipolar with the low power of CMOS to reduce the power consumption to about one-fifth that of the standard AM26LS32, while maintaining AC and DC performance.
