ACTIVE
Technology family |
ACT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
6 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
0 |
Input type |
TTL-Compatible CMOS |
Output type |
Open-drain |
Features |
Positive input clamp diode, Very high speed (tpd 5-10ns) |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-14-32 mm² 5 x 6.4

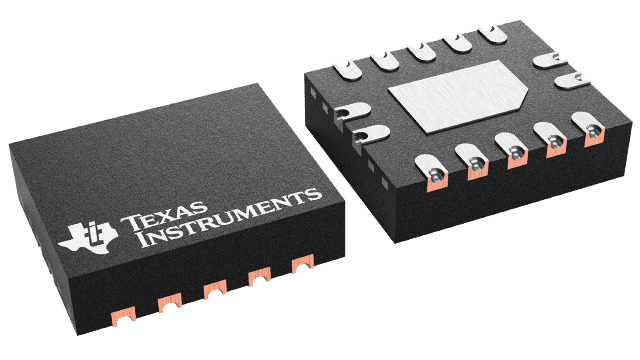

The SN74ACT05-Q1 device contains six independent inverters with open-drain outputs and TTL-compatible inputs.
