ACTIVE
Audio input type |
Analog Input |
Architecture |
Class-D |
Speaker channels (max) |
Stereo |
Control interface |
Hardware |
Output power (W) |
6 |
Power stage supply (max) (V) |
18 |
Power stage supply (min) (V) |
8.5 |
THD + N at 1 kHz (%) |
0.1 |
Load (min) (Ω) |
8 |
Analog supply voltage (min) (V) |
8.5 |
Analog supply voltage (max) (V) |
18 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
HTQFP (PHP)-48-81 mm² 9 x 9
Load From a 12-V SupplyPowerPAD Is a trademark of Texas Instruments

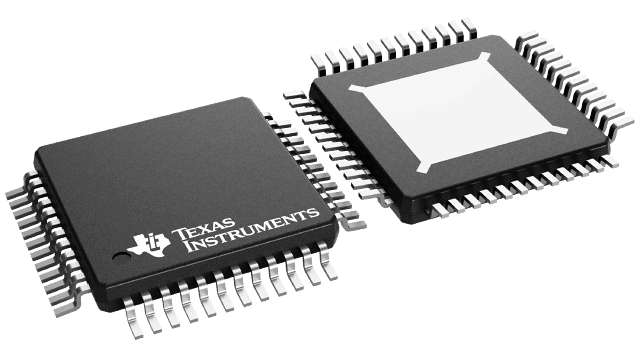

The TPA3005D2 is a 6-W (per channel) efficient, Class-D audio amplifier for driving bridged-tied stereo speakers. The TPA3005D2 can drive stereo speakers as low as 8 . The high efficiency of the TPA3005D2 eliminates the need for external heatsinks when playing music.
The gain of the amplifier is controlled by two gain select pins. The gain selections are 15.3, 21.2, 27.2, and 31.8 dB.
The outputs are fully protected against shorts to GND, VCC, and output-to-output shorts. Thermal protection ensures the maximum junction temperature is not exceeded.
