ACTIVE
Technology family |
AC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Number of channels |
3 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Input type |
Schmitt-Trigger |
Output type |
3-State |
Features |
Positive input clamp diode, Very high speed (tpd 5-10ns) |
Data rate (max) (Mbps) |
100 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

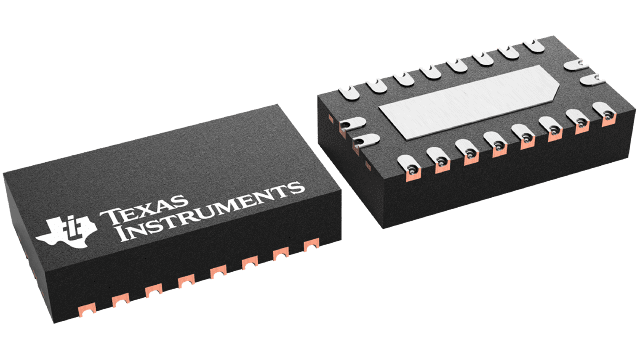

The SN74AC3G99-Q1 device contains three independent configurable logic gates with 3-state outputs. Each gate has four inputs and performs the boolean function Y = (A•C+B•C)⊕D. All inputs include Schmitt-triggers, eliminating any erroneous data outputs due to slow-edged or noisy input signals.
