ACTIVE
Technology family |
HC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Number of channels |
4 |
IOL (max) (mA) |
6 |
Supply current (max) (µA) |
80 |
IOH (max) (mA) |
-6 |
Input type |
Standard CMOS |
Output type |
3-State |
Features |
Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
PDIP (N)-14-181.42 mm² 19.3 x 9.4

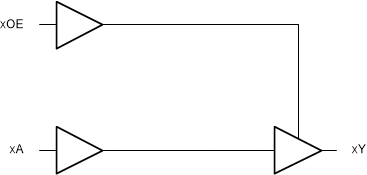

This device contains four independent buffers with 3-state outputs. Each gate performs the Boolean function Y = A in positive logic.
