CD74ACT74
  • CD74ACT74
  • CD74ACT74
  • CD74ACT74

CD74ACT74

ACTIVE

Dual Positive-Edge-Triggered D-Type Flip-Flops with Set and Reset

Texas Instruments CD74ACT74 Product Info

1 April 2026 0

Parameters

Number of channels

2

Technology family

ACT

Supply voltage (min) (V)

4.5

Supply voltage (max) (V)

5.5

Input type

TTL-Compatible CMOS

Output type

Push-Pull

Clock frequency (max) (MHz)

97

IOL (max) (mA)

24

IOH (max) (mA)

-24

Supply current (max) (µA)

40

Features

Balanced outputs, Positive input clamp diode, Very high speed (tpd 5-10ns)

Operating temperature range (°C)

-55 to 125

Rating

Catalog

Package

PDIP (N)-14-181.42 mm² 19.3 x 9.4

Features

  • Inputs are TTL-voltage compatible
  • Speed of bipolar F, AS, and S, with significantly reduced power consumption
  • Balanced propagation delays
  • ±24mA output drive current
    • Fanout to 15 F devices
  • SCR-latchup-resistant CMOS process and circuit design
  • Exceeds 2kV ESD protection per MIL-STD-883, method 3015
  • Inputs are TTL-voltage compatible
  • Speed of bipolar F, AS, and S, with significantly reduced power consumption
  • Balanced propagation delays
  • ±24mA output drive current
    • Fanout to 15 F devices
  • SCR-latchup-resistant CMOS process and circuit design
  • Exceeds 2kV ESD protection per MIL-STD-883, method 3015

Description

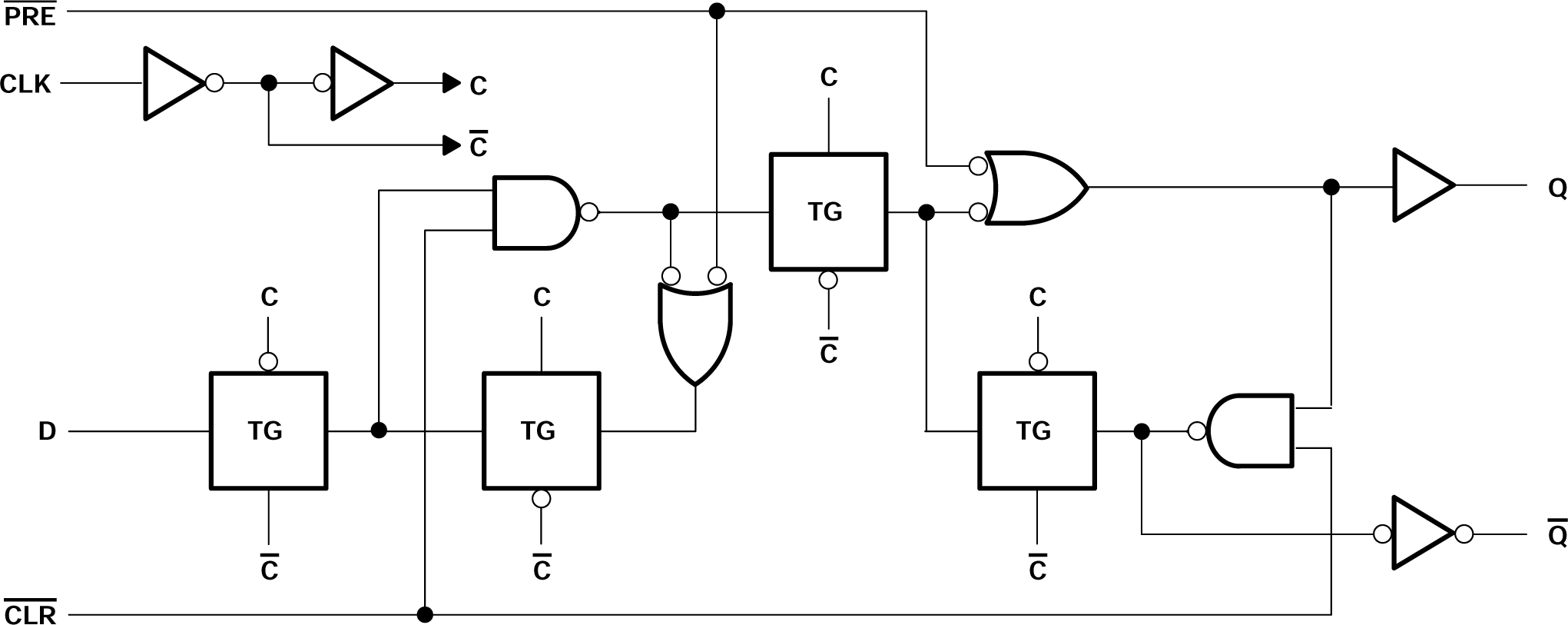

The ’ACT74 dual positive-edge-triggered devices are D-type flip-flops.

The ’ACT74 dual positive-edge-triggered devices are D-type flip-flops.
