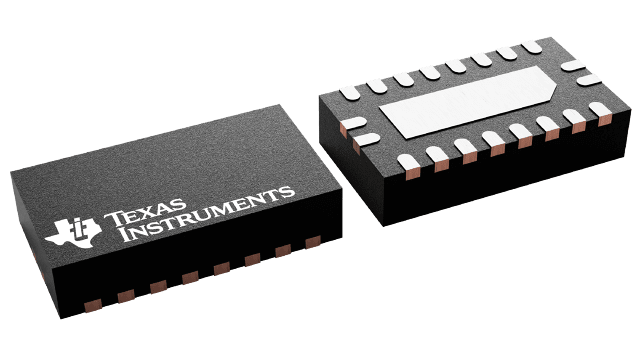

SN74AC3G99

ACTIVE

1.5V to 6V, ultra-configurable multi-function gate with 3-state outputs

Texas Instruments SN74AC3G99 Product Info

1 April 2026 3

Parameters

Technology family

AC

Supply voltage (min) (V)

2

Supply voltage (max) (V)

6

Number of channels

3

IOL (max) (mA)

24

IOH (max) (mA)

-24

Input type

Schmitt-Trigger

Output type

3-State

Features

Positive input clamp diode, Very high speed (tpd 5-10ns)

Data rate (max) (Mbps)

100

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

Features

  • Wide operating range of 1.5V to 6V
  • Inputs accept voltages up to 6V
  • Continuous ±24mA output drive at 5V
  • Supports up to ±75mA output drive at 5Vin short bursts
  • Drives 50Ω transmission lines
  • Maximum tpd of 10.6ns at 5V, 50pF load
  • Wide operating range of 1.5V to 6V
  • Inputs accept voltages up to 6V
  • Continuous ±24mA output drive at 5V
  • Supports up to ±75mA output drive at 5Vin short bursts
  • Drives 50Ω transmission lines
  • Maximum tpd of 10.6ns at 5V, 50pF load

Description

The SN74AC3G99 device contains three independent configurable logic gates with 3-state outputs. Each gate has four inputs and performs the boolean function Y = (A•C+B•C)⊕D. All inputs include Schmitt-triggers, eliminating any erroneous data outputs due to slow-edged or noisy input signals.
