TAS5753MD
  • TAS5753MD
  • TAS5753MD
  • TAS5753MD

TAS5753MD

ACTIVE

20-W stereo, 39-W mono, 4.5-to 26.4-V, digital input open loop Class-D audio amplifier w/ AGL & HP

Texas Instruments TAS5753MD Product Info

1 April 2026 4

Parameters

Audio input type

Digital Input

Architecture

Class-D

Speaker channels (max)

Stereo

Control interface

I2C

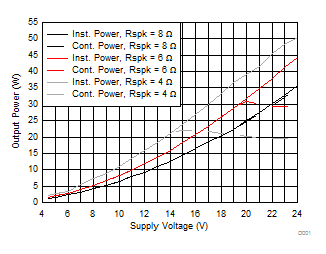

Output power (W)

20

Power stage supply (max) (V)

26.4

Power stage supply (min) (V)

8

RDS(on) (Ω)

0.16

THD + N at 1 kHz (%)

0.13

Load (min) (Ω)

2

Analog supply voltage (min) (V)

3

Analog supply voltage (max) (V)

3.6

Rating

Catalog

Operating temperature range (°C)

0 to 85

Package

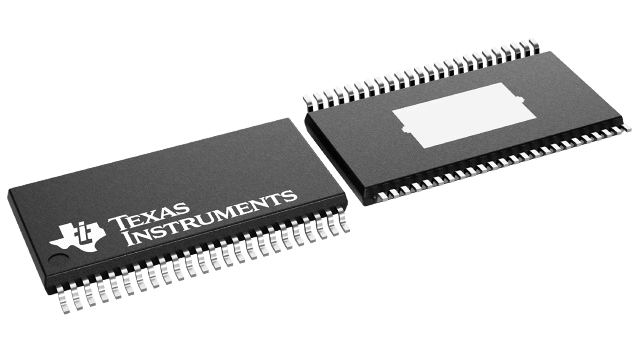

HTSSOP (DCA)-48-101.25 mm² 12.5 x 8.1

Features

  • Audio Input/Output
    • Supports BTL Configuration With 4-Ω Load
    • One Stereo Serial Audio Input
    • I2C Address Selection Pin
    • Supports 44.1-kHz and 48-kHz Sample Rates (LJ/RJ/I2S)
  • Headphone Amplifier and Line Driver
    • Independent Channel Volume Controls With Gain of 24 dB to Mute in 0.125-dB Steps
    • Programmable Three-Band Automatic Gain Limiting (AGL)
    • 20 Programmable Biquads for Speaker EQ and Other Audio-Processing Features
  • General Features
    • I2C Serial Control Interface Operational Without MCLK
    • Automatic Rate Detection
    • Thermal, Short-Circuit, and Undervoltage Protection
    • 105-dB SNR, A-Weighted, Referenced to Full Scale (0 dB)
    • Up to 90% Efficient
    • AD, BD, and Ternary Modulation
    • PWM Level Meter
    • Operates from 4.5-V to 24-V PVDD
  • Audio Input/Output
    • Supports BTL Configuration With 4-Ω Load
    • One Stereo Serial Audio Input
    • I2C Address Selection Pin
    • Supports 44.1-kHz and 48-kHz Sample Rates (LJ/RJ/I2S)
  • Headphone Amplifier and Line Driver
    • Independent Channel Volume Controls With Gain of 24 dB to Mute in 0.125-dB Steps
    • Programmable Three-Band Automatic Gain Limiting (AGL)
    • 20 Programmable Biquads for Speaker EQ and Other Audio-Processing Features
  • General Features
    • I2C Serial Control Interface Operational Without MCLK
    • Automatic Rate Detection
    • Thermal, Short-Circuit, and Undervoltage Protection
    • 105-dB SNR, A-Weighted, Referenced to Full Scale (0 dB)
    • Up to 90% Efficient
    • AD, BD, and Ternary Modulation
    • PWM Level Meter
    • Operates from 4.5-V to 24-V PVDD

Description

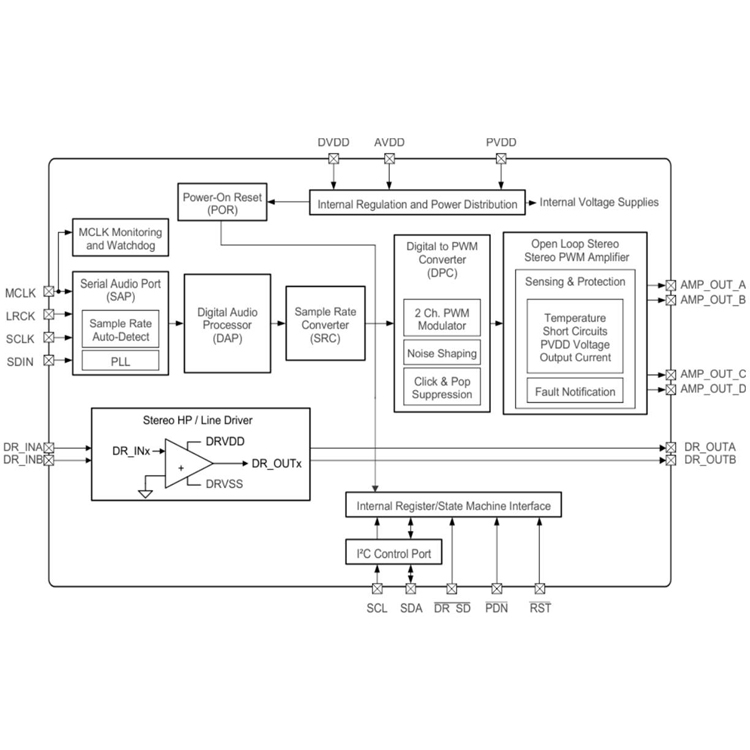

The TAS5753MD device is an efficient, digital-input audio amplifier for driving stereo speakers configured as a bridge tied load (BTL). One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.

The TAS5753MD device is a slave-only device receiving all clocks from external sources. The TAS5753MD device operates with a PWM carrier between a 384-kHz switching rate and a 288-kHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz. The device has an integrated Directpath™ Headphone amplifier and linedriver to increase the system-level integration and reduce total solution costs.
