SN65LVDS302
  • SN65LVDS302

SN65LVDS302

ACTIVE

Programmable 27-bit display serial interface receiver

Texas Instruments SN65LVDS302 Product Info

1 April 2026 3

Parameters

Function

Deserializer

Protocols

Channel-Link I

Supply voltage (V)

1.8

Signaling rate (Mbps)

1755

Input signal

LVDS

Output signal

CMOS

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

NFBGA (ZXH)-80-25 mm² 5 x 5

Features

  • Serial interface technology
  • Compatible with FlatLink™3G such as SN65LVDS301
  • Supports video interfaces up to 24-bit RGB data and 3 control bits received over 1, 2 or 3 SubLVDS differential lines
  • SubLVDS differential voltage levels
  • Up to 1.755-Gbps Data Throughput
  • Three operating modes to conserve power
    • Active mode QVGA: 17 mW
    • Typical shutdown: 0.7 µW
    • Typical standby mode: 27 µW Typical
  • Bus-swap function for PCB-layout flexibility
  • ESD rating > 4 kV (HBM)
  • Pixel clock range of 4 MHz to 65 MHz
  • Failsafe on all CMOS inputs

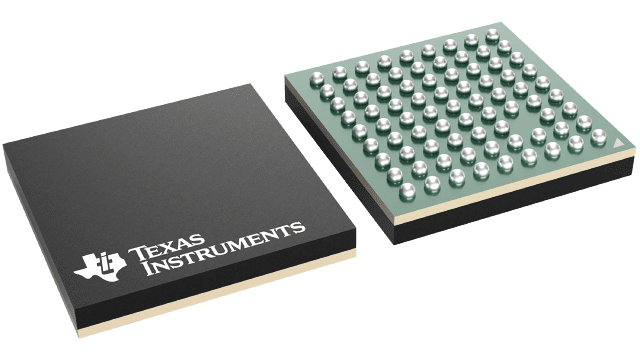

  • Packaged in 5-mm × 5-mm nFBGA with 0.5-mm ball pitch
  • Very low EMI meets SAE J1752/3 ’Kh’-spec
  • Serial interface technology
  • Compatible with FlatLink™3G such as SN65LVDS301
  • Supports video interfaces up to 24-bit RGB data and 3 control bits received over 1, 2 or 3 SubLVDS differential lines
  • SubLVDS differential voltage levels
  • Up to 1.755-Gbps Data Throughput
  • Three operating modes to conserve power
    • Active mode QVGA: 17 mW
    • Typical shutdown: 0.7 µW
    • Typical standby mode: 27 µW Typical
  • Bus-swap function for PCB-layout flexibility
  • ESD rating > 4 kV (HBM)
  • Pixel clock range of 4 MHz to 65 MHz
  • Failsafe on all CMOS inputs
  • Packaged in 5-mm × 5-mm nFBGA with 0.5-mm ball pitch
  • Very low EMI meets SAE J1752/3 ’Kh’-spec

Description

The SN65LVDS302 receiver de-serializes FlatLink™3G compliant serial input data to 27 parallel data outputs. The SN65LVDS302 receiver contains one shift register to load 30 bits from 1, 2 or 3 serial inputs and latches the 24 pixel bits and 3 control bits out to the parallel CMOS outputs after checking the parity bit. If the parity check confirms correct parity, the Channel Parity Error (CPE) output remains low. If a parity error is detected, the CPE output generates a high pulse while the data output bus disregards the newly-received pixel. Instead, the last data word is held on the output bus for another clock cycle.
