ACTIVE
Architecture |
FET / CMOS Input, Voltage FB |
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
3.3 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.25 |
GBW (typ) (MHz) |
900 |
BW at Acl (MHz) |
1800 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
1150 |
Vn at flatband (typ) (nV√Hz) |
3.3 |
Vn at 1 kHz (typ) (nV√Hz) |
12.1 |
Iq per channel (typ) (mA) |
20.5 |
Vos (offset voltage at 25°C) (max) (mV) |
5 |
Rail-to-rail |
No |
Features |
Shutdown |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
CMRR (typ) (dB) |
84 |
Input bias current (max) (pA) |
5 |
Offset drift (typ) (µV/°C) |
0.2 |
Iout (typ) (mA) |
76 |
2nd harmonic (dBc) |
90 |
3rd harmonic (dBc) |
86 |
Frequency of harmonic distortion measurement (MHz) |
10 |
WSON (DSG)-8-4 mm² 2 x 2
The OPA859-Q1 is a wideband, low-noise operational amplifier with CMOS inputs for wideband transimpedance and voltage amplifier applications. When the device is configured as a transimpedance amplifier (TIA), the 0.9-GHz gain bandwidth product (GBWP) enables high closed-loop bandwidths in low-capacitance photodiode applications.
The graph below shows the bandwidth and noise performance of the OPA859-Q1 as a function of the photodiode capacitance when the amplifier is configured as a TIA. The total noise is calculated along a bandwidth range extending from DC to the calculated frequency (f) on the left scale. The OPA859-Q1 package has a feedback pin (FB) that simplifies the feedback network connection between the input and the output.

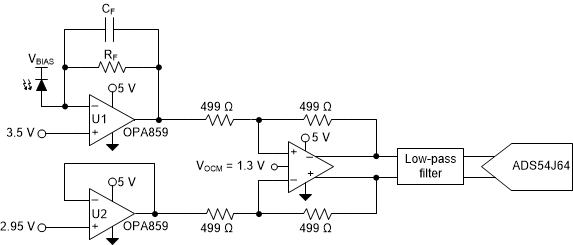

The OPA859-Q1 is optimized to operate in optical time-of-flight (ToF) systems where the OPA859-Q1 is used with time-to-digital converters, such as the TDC7201. Use the OPA859-Q1 to drive a high-speed analog-to-digital converter (ADC) in high-resolution LIDAR systems with a differential output amplifier, such as the THS4541-Q1.
