0
ACTIVE
Number of receivers |
1 |
Number of transmitters |
1 |
Duplex |
Half |
Supply voltage (nom) (V) |
5 |
Signaling rate (max) (Mbps) |
1 |
Fault protection (V) |
-9 to 14 |
Common-mode range (V) |
-7 to 12 |
Number of nodes |
256 |
Isolated |
No |
Supply current (max) (µA) |
15000 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43
The SN65HVD05, SN75HVD05, SN65HVD06, SN75HVD06, SN65HVD07, and SN75HVD07 combine a 3-state differential line driver and differential line receiver. They are designed for balanced data transmission and interoperate with ANSI TIA/EIA-485-A and ISO 8482E standard-compliant devices. The driver is designed to provide a differential output voltage greater than that required by these standards for increased noise margin. The drivers and receivers have active-high and active-low enables respectively, which can be externally connected together to function as direction control.

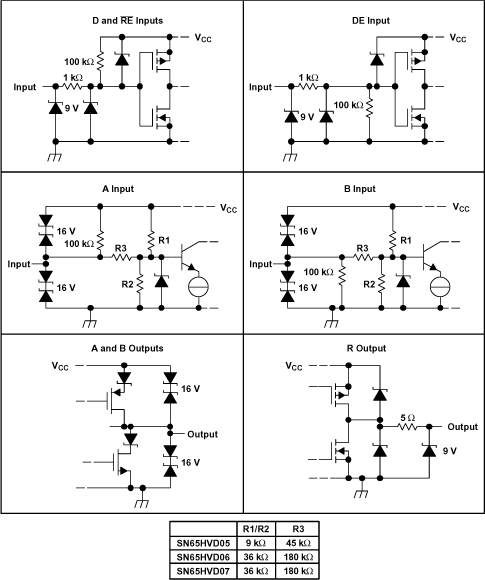

The driver differential outputs and receiver differential inputs connect internally to form a differential input/ output (I/O) bus port that is designed to offer minimum loading to the bus whenever the driver is disabled or not powered. These devices feature wide positive and negative common-mode voltage ranges, making them suitable for party-line applications.
