ACTIVE
Bits (#) |
8 |
Data rate (max) (Mbps) |
150 |
Topology |
Open drain |
Direction control (typ) |
Fixed-direction |
Output drive capability (max) (mA) |
8000 |
Vin (min) (V) |
1.65 |
Vin (max) (V) |
5.5 |
Vout (min) (V) |
1.65 |
Vout (max) (V) |
5.5 |
Applications |
GPIO |
Features |
Output enable, Single supply |
Prop delay (ns) |
13.7 |
Technology family |
LVxT |
Supply current (max) (mA) |
1.5 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |

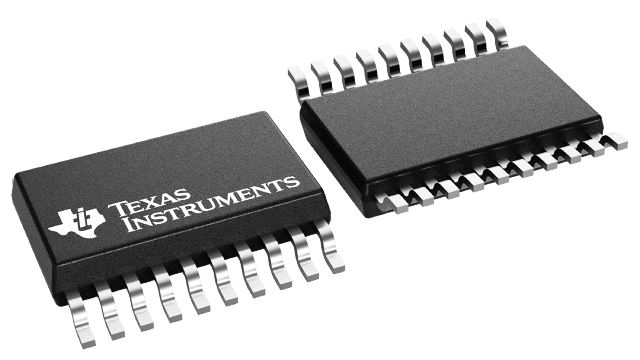

TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

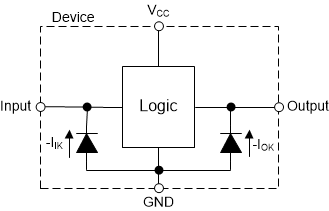

The SN74LV8T7541 is an octal buffer with open-drain outputs.
The input is designed with a reduced threshold circuit to support up translation when the supply voltage is larger than the input voltage. Additionally, the 5V tolerant input pins enable down translation when the input voltage is larger than the supply voltage. The output level is always referenced to the supply voltage (VCC) and supports 1.8V, 2.5V, 3.3V, and 5V CMOS levels.
