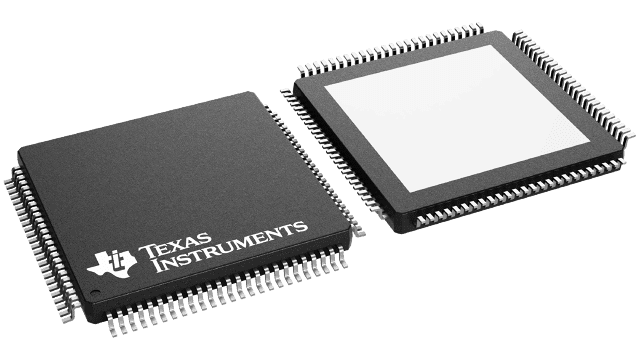

SN74FB1650
  • SN74FB1650

SN74FB1650

ACTIVE

18-bit TTL/BTL universal storage transceiver

Texas Instruments SN74FB1650 Product Info

1 April 2026 3

Parameters

Bits (#)

18

Data rate (max) (Mbps)

300

Topology

Open drain, Push-Pull

Output drive capability (max) (mA)

100000

Vin (min) (V)

4.5

Vin (max) (V)

5.5

Applications

GTL

Features

Single supply

Technology family

FB

Supply current (max) (mA)

120

Rating

Catalog

Operating temperature range (°C)

0 to 70

Package

HLQFP (PCA)-100-256 mm² 16 x 16

Features

  • Compatible With IEEE Std 1194.1-1991 (BTL)
  • TTL A Port, Backplane Transceiver Logic (BTL) B Port
  • Open-Collector B-Port Outputs Sink 100 mA
  • BIAS VCC Minimizes Signal Distortion During Live Insertion or Withdrawal
  • High-Impedance State During Power Up and Power Down
  • B-Port Biasing Network Preconditions the Connector and PC Trace to the BTL High-Level Voltage
  • TTL-Input Structures Incorporate Active Clamping to Aid in Line Termination

  • Compatible With IEEE Std 1194.1-1991 (BTL)
  • TTL A Port, Backplane Transceiver Logic (BTL) B Port
  • Open-Collector B-Port Outputs Sink 100 mA
  • BIAS VCC Minimizes Signal Distortion During Live Insertion or Withdrawal
  • High-Impedance State During Power Up and Power Down
  • B-Port Biasing Network Preconditions the Connector and PC Trace to the BTL High-Level Voltage
  • TTL-Input Structures Incorporate Active Clamping to Aid in Line Termination

Description

The SN74FB1650 contains two 9-bit transceivers designed to translate signals between TTL and backplane transceiver-logic (BTL) environments. The device is designed specifically to be compatible with IEEE Std 1194.1-1991.

The B port operates at BTL-signal levels. The open-collector B ports are specified to sink 100 mA. Two output enables (OEB and OEB) are provided for the B outputs. When OEB is low, OEB is high, or VCC is less than 2.1 V, the B port is turned off.

The A port operates at TTL-signal levels. The A outputs reflect the inverse of the data at the B port when the A-port output enable (OEA) is high. When OEA is low or when VCC is less than 2.1 V, the A outputs are in the high-impedance state.

BIAS VCC establishes a voltage between 1.62 V and 2.1 V on the BTL outputs when VCC is not connected.

BG VCC and BG GND are the supply inputs for the bias generator.
