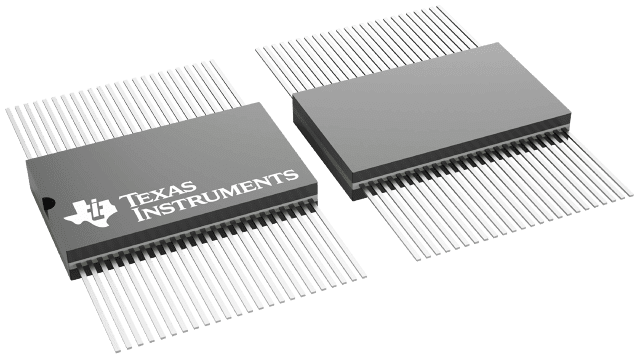

Texas Instruments SN54LVTH162374-SP Product Info

Parameters

Number of channels	16
Technology family	LVT
Supply voltage (min) (V)	2.7
Supply voltage (max) (V)	3.6
Input type	TTL-Compatible CMOS
Output type	3-State
Clock frequency (max) (MHz)	150
IOL (max) (mA)	12
IOH (max) (mA)	-12
Supply current (max) (µA)	5000
Features	Balanced outputs, Bus-hold, Damping resistors, Over-voltage tolerant inputs, Partial power down (Ioff), Power up 3-state, Ultra high speed (tpd <5ns)
Operating temperature range (°C)	-55 to 125
Rating	Space

Package

CFP (WD)-48-153.4008 mm² 15.88 x 9.66

Features

Members of the Texas Instruments Widebus™ Family
Output Ports Have Equivalent 22- Series Resistors, So No External Resistors Are Required
Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V V_CC)
Support Unregulated Battery Operation Down to 2.7 V
Typical V_OLP (Output Ground Bounce) <0.8 V at V_CC = 3.3 V, T_A = 25°C
I_off and Power-Up 3-State Support Hot Insertion
Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
Distributed V_CC and GND Pins Minimize High-Speed Switching Noise
Flow-Through Architecture Optimizes PCB Layout
Latch-Up Performance Exceeds 500 mA Per JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)

Widebus is a trademark of Texas Instruments.

Members of the Texas Instruments Widebus™ Family
Output Ports Have Equivalent 22- Series Resistors, So No External Resistors Are Required
Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V V_CC)
Support Unregulated Battery Operation Down to 2.7 V
Typical V_OLP (Output Ground Bounce) <0.8 V at V_CC = 3.3 V, T_A = 25°C
I_off and Power-Up 3-State Support Hot Insertion
Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
Distributed V_CC and GND Pins Minimize High-Speed Switching Noise
Flow-Through Architecture Optimizes PCB Layout
Latch-Up Performance Exceeds 500 mA Per JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)

Widebus is a trademark of Texas Instruments.

Description

The 'LVTH162374 devices are 16-bit edge-triggered D-type flip-flops with 3-state outputs designed for low-voltage (3.3-V) V_CC operation, but with the capability to provide a TTL interface to a 5-V system environment. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

These devices can be used as two 8-bit flip-flops or one 16-bit flip-flop. On the positive transition of the clock (CLK), the Q outputs of the flip-flop take on the logic levels set up at the D inputs.

A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines without need for interface or pullup components.

OE does not affect internal operations of the flip-flop. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.

The outputs, which are designed to source or sink up to 12 mA, include equivalent 22- series resistors to reduce overshoot and undershoot.

Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.

When V_CC is between 0 and 1.5 V, the devices are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

These devices are fully specified for hot-insertion applications using I_off and power-up 3-state. The I_off circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.
