SN74LVC3GU04

ACTIVE

Texas Instruments SN74LVC3GU04 Product Info

1 April 2026 0

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	3
IOL (max) (mA)	32
IOH (max) (mA)	-32
Supply current (max) (µA)	10
Input type	Standard CMOS
Output type	Push-Pull
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Unbuffered, Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

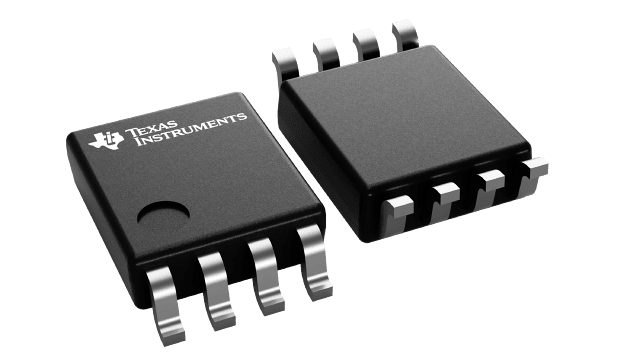

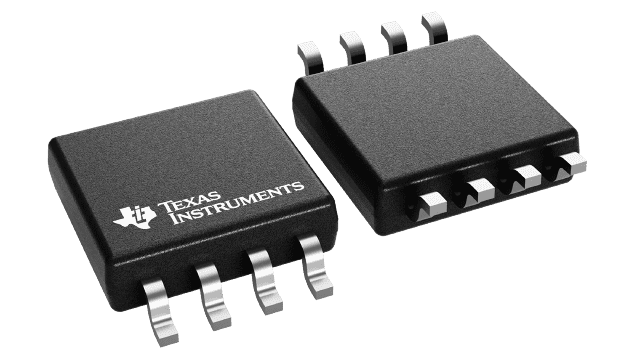

SSOP (DCT)-8-11.8 mm² 2.95 x 4

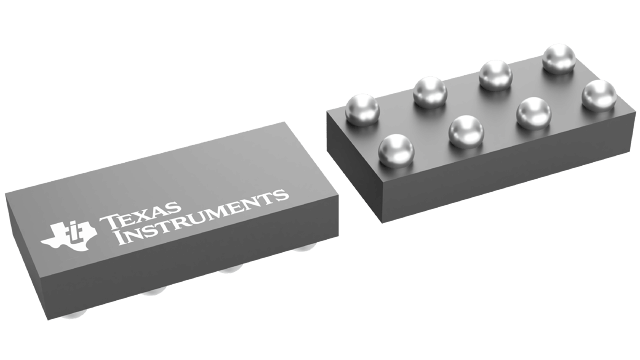

Available in the Texas Instruments NanoFree Package
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Max t_pd of 3.9 ns at 3.3 V
Low Power Consumption, 10-μA Max I_CC
±24-mA Output Drive at 3.3 V
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
Ioff Support Live Insertion, Partial Power Down Mode and Back Drive Protection
Unbuffered Outputs
Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Available in the Texas Instruments NanoFree Package
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Max t_pd of 3.9 ns at 3.3 V
Low Power Consumption, 10-μA Max I_CC
±24-mA Output Drive at 3.3 V
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
Ioff Support Live Insertion, Partial Power Down Mode and Back Drive Protection
Unbuffered Outputs
Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

This triple inverter is designed for 1.65-V to 5.5-V V_CC operation.

The SN74LVC3GU04 contains three inverters with unbuffered outputs and performs the Boolean function Y = A.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This triple inverter is designed for 1.65-V to 5.5-V V_CC operation.

The SN74LVC3GU04 contains three inverters with unbuffered outputs and performs the Boolean function Y = A.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
