DLP2021-Q1
  • DLP2021-Q1
  • DLP2021-Q1

DLP2021-Q1

ACTIVE

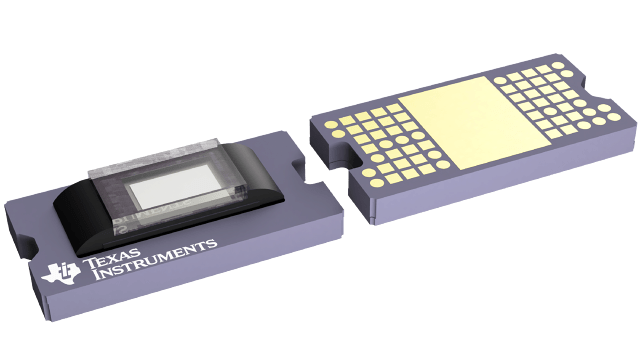

Automotive 0.2-inch DLP® digital micromirror device (DMD)

Texas Instruments DLP2021-Q1 Product Info

1 April 2026 0

Parameters

Array diagonal (in)

0.2

Display resolution (max)

588 x 330

Chipset family

DLP2021-Q1

Rating

Automotive

Operating temperature range (°C)

-40 to 105

Package

DLP-S249 (FQU)-64-143.64 mm² 16.8 x 8.55

Features

  • Qualified for automotive applications
    • An operating DMD array temperature range of –40°C to 105°C
  • 0.2-inch diagonal micromirror array
    • 7.6-µm micromirror pitch
    • ±12° micromirror tilt angle (relative to flat state)
    • Side illumination for reduced system size
  • 16:9 (588 × 330) input resolution
  • Polarization-independent spatial light modulator
  • Compatible with LED or laser light sources
  • Low-power consumption: 260 mW (maximum)
  • Hermetic package
  • 80-MHz double data rate (DDR)digital micromirror device (DMD) interface
  • Qualified for automotive applications
    • An operating DMD array temperature range of –40°C to 105°C
  • 0.2-inch diagonal micromirror array
    • 7.6-µm micromirror pitch
    • ±12° micromirror tilt angle (relative to flat state)
    • Side illumination for reduced system size
  • 16:9 (588 × 330) input resolution
  • Polarization-independent spatial light modulator
  • Compatible with LED or laser light sources
  • Low-power consumption: 260 mW (maximum)
  • Hermetic package
  • 80-MHz double data rate (DDR)digital micromirror device (DMD) interface

Description

The DLP2021-Q1 automotive digital micromirror device (DMD) is designed for automotive exterior light control and display applications. Applications include ground projection that displays full color and animated and dynamic content. Ground projections help to facilitate vehicle-to-pedestrian (V2P) communication, such as back-up and door-open warnings, and orchestrate vehicle communication systems and vehicle personalization options. Due to their small form factor and low power operation, projectors with the DLP2021-Q1 chipset can support many projection applications. They can be placed in many locations in the car, including inside the side mirror, door panel, tail light, front grill, and more.

The DLP2021-Q1 automotive digital micromirror device (DMD) is designed for automotive exterior light control and display applications. Applications include ground projection that displays full color and animated and dynamic content. Ground projections help to facilitate vehicle-to-pedestrian (V2P) communication, such as back-up and door-open warnings, and orchestrate vehicle communication systems and vehicle personalization options. Due to their small form factor and low power operation, projectors with the DLP2021-Q1 chipset can support many projection applications. They can be placed in many locations in the car, including inside the side mirror, door panel, tail light, front grill, and more.
