ACTIVE
Architecture |
Current FB |
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
7 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
12.6 |
GBW (typ) (MHz) |
1500 |
BW at Acl (MHz) |
1500 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
1700 |
Vn at flatband (typ) (nV√Hz) |
2.1 |
Vn at 1 kHz (typ) (nV√Hz) |
2.1 |
Iq per channel (typ) (mA) |
5.8 |
Vos (offset voltage at 25°C) (max) (mV) |
3 |
Rail-to-rail |
No |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
CMRR (typ) (dB) |
60 |
Input bias current (max) (pA) |
20000000 |
Offset drift (typ) (µV/°C) |
15 |
Iout (typ) (mA) |
80 |
2nd harmonic (dBc) |
68 |
3rd harmonic (dBc) |
72 |
Frequency of harmonic distortion measurement (MHz) |
5 |
SOIC (D)-8-29.4 mm² 4.9 x 6

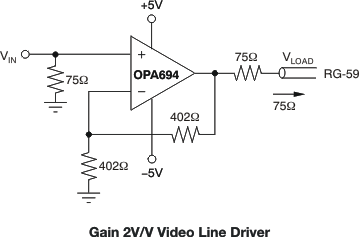

The OPA694 is an ultra-wideband, low-power, current feedback operational amplifier featuring high slew rate and low differential gain/phase errors. An improved output stage provides ±80mA output drive with < 1.5V output voltage headroom. Low supply current with > 500MHz bandwidth meets the requirements of high-density video routers. Being a current feedback design, the OPA694 holds its bandwidth to very high gains—at a gain of 10, the OPA694 will still provide 200MHz bandwidth.
RF applications can use the OPA694 as a low-power SAW pre-amplifier. Extremely high 3rd-order intercept is provided through 70MHz at much lower quiescent power than many typical RF amplifiers.
The OPA694 is available in an industry-standard pinout in both SO-8 and SOT23-5 packages.
