0
ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.8 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
3 |
Slew rate (typ) (V/µs) |
1.5 |
Vos (offset voltage at 25°C) (max) (mV) |
3 |
Iq per channel (typ) (mA) |
0.15 |
Vn at 1 kHz (typ) (nV√Hz) |
16 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
2 |
Features |
Cost Optimized, EMI Hardened |
Input bias current (max) (pA) |
96 |
CMRR (typ) (dB) |
96 |
Iout (typ) (A) |
0.02 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.2 |
Input common mode headroom (to positive supply) (typ) (V) |
0.2 |
Output swing headroom (to negative supply) (typ) (V) |
0.005 |
Output swing headroom (to positive supply) (typ) (V) |
-0.005 |
TSSOP (PW)-14-32 mm² 5 x 6.4
The TLV314 family of single-, dual-, and quad-channel operational amplifiers represents a new generation of low-power, general-purpose operational amplifiers. Rail-to-rail input and output swings (RRIO), low quiescent current (150 µA typically at 5 V) combine with a wide bandwidth of 3 MHz to make this family very attractive for a variety of battery-powered applications that require a good balance between cost and performance. Additionally, the TLV314 family architecture achieves a low input bias current of 1 pA, allowing for applications with MΩ source impedances.

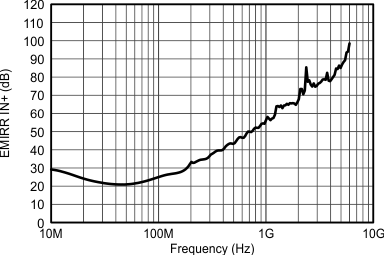

The robust design of the TLV314 devices provides ease-of-use to the circuit designer: unity-gain stability, RRIO, capacitive loads of up to 300 pF, an integrated RF/EMI rejection filter, no phase reversal in overdrive conditions, and high electrostatic discharge (ESD) protection (4-kV HBM).
These devices are optimized for low-voltage operation as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V), and are specified over the extended industrial temperature range of –40°C to +125°C.
The TLV314 (single) is available in both 5-pin SC70 and SOT-23 packages. The TLV2314 (dual) is offered in 8-pin SOIC and VSSOP packages. The quad-channel TLV4314 is offered in a 14-pin TSSOP package.
