ACTIVE
Product type |
Analog output |
Common-mode voltage (max) (V) |
26 |
Common-mode voltage (min) (V) |
-0.3 |
Input offset (±) (max) (µV) |
150 |
Input offset drift (±) (typ) (µV/°C) |
0.1 |
Features |
Bidirectional, Low-side Capable |
Rating |
Automotive |
Voltage gain (V/V) |
50, 100, 200 |
CMRR (min) (dB) |
100 |
Bandwidth (kHz) |
14, 30, 80 |
Supply voltage (max) (V) |
26 |
Supply voltage (min) (V) |
2.7 |
Iq (max) (mA) |
0.115 |
Number of channels |
1 |
Comparators (#) |
0 |
Gain error (%) |
0.9, 1.4 |
Gain error drift (±) (max) (ppm/°C) |
10 |
Slew rate (V/µs) |
0.4 |
TI functional safety category |
Functional Safety-Capable |
Operating temperature range (°C) |
-40 to 125 |
SOT-SC70 (DCK)-6-4.2 mm² 2 x 2.1

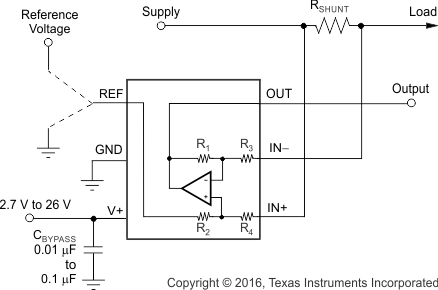

The INA199-Q1 is a voltage-output, current-sense amplifier that can sense drops across shunts at common-mode voltages from –0.1 V to 26V, independent of the supply voltage. Three fixed gains are available: 50V/V, 100V/V, and 200V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.
This device operates from a single 2.7-V to 26-V power supply, drawing a maximum of 100 µA of supply current. All gain options are specified from –40°C to +125°C, and are offered in a 6-pin SC70 package.
