ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
GBW (typ) (MHz) |
16 |
Slew rate (typ) (V/µs) |
9 |
Rail-to-rail |
Out |
Vos (offset voltage at 25°C) (max) (mV) |
2 |
Iq per channel (typ) (mA) |
2 |
Vn at 1 kHz (typ) (nV√Hz) |
4.5 |
Features |
Small Size |
THD + N at 1 kHz (typ) (%) |
0.0001 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (A) |
0.025 |
Architecture |
CMOS |
CMRR (typ) (dB) |
110 |

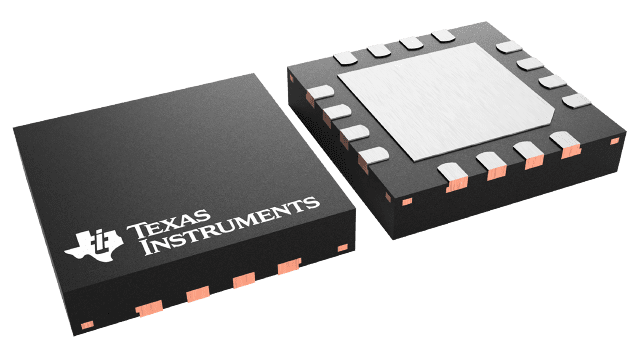

WQFN (RUM)-16-16 mm² 4 x 4
The dual-channel OPA1678-Q1 and quad-channel OPA1679-Q1 (OPA167x-Q1) operational amplifiers offer higher system-level performance over legacy op amps commonly used in audio circuitry. The OPA167x-Q1 amplifiers achieve a low 4.5-nV/√Hz noise density and low distortion of 0.0001% at 1 kHz, which improves audio signal fidelity. These devices also offer rail-to-rail output swing to within 800 mV with a 2-kΩ load, which increases headroom and maximizes dynamic range.
To accommodate the power-supply constraints of many types of audio products, the OPA167x-Q1 operate over a very wide supply range of ±2.25 V to ±18 V (or 4.5 V to 36 V) on only 2 mA of supply current. These op amps are unity-gain stable and have excellent dynamic behavior over a wide range of load conditions allowing the OPA167x-Q1 to be used in many audio circuits.
The OPA167x-Q1 temperature ranges are specified from –40°C to +125°C.
