Protocols |
10 BASE-T, 100 BASE-T, 1000 BASE-T, LAN, LVDS |
Configuration |
2:1 SPDT |
Number of channels |
11 |
Bandwidth (MHz) |
1100 |
Supply voltage (max) (V) |
3.6 |
Supply voltage (min) (V) |
3 |
Ron (typ) (mΩ) |
4000 |
Input/output voltage (min) (V) |
0 |
Input/output voltage (max) (V) |
3.6 |
Supply current (typ) (µA) |
250 |
ESD HBM (typ) (kV) |
2 |
Operating temperature range (°C) |
-40 to 85 |
Crosstalk (dB) |
-37 |
ESD CDM (kV) |
1 |
Input/output continuous current (max) (mA) |
128 |
COFF (typ) (pF) |
2.5 |
CON (typ) (pF) |
8 |
Off isolation (typ) (dB) |
-37 |
Propagation delay time (µs) |
0.00004 |
Ron (max) (mΩ) |
6000 |
Ron channel match (max) (Ω) |
1 |
RON flatness (typ) (Ω) |
0.5 |
Turnoff time (disable) (max) (ns) |
9 |
Turnon time (enable) (max) (ns) |
15 |
VIH (min) (V) |
2 |
VIL (max) (V) |
0.8 |
Rating |
Catalog |
VQFN (RHH)-36-36 mm² 6 x 6
Typ)

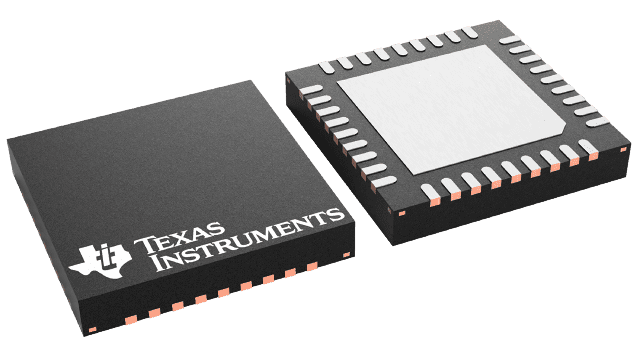

The TS3L4892 is a 16-bit to 8-bit multiplexer/demultiplexer LAN switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides additional I/Os for switching status indicating LED signals.
The device provides a low and flat ON-state resistance (rON) and an excellent ON-state resistance match. Low input/output capacitance, high bandwidth, low skew, and low crosstalk among channels make this device suitable for various LAN applications, such as 10/100/1000 Base-T.
This device can be used to replace mechanical relays in LAN applications. It also can be used to route signals from a 10/100 Base-T ethernet transceiver to the RJ-45 LAN connectors in laptops or in docking stations.
