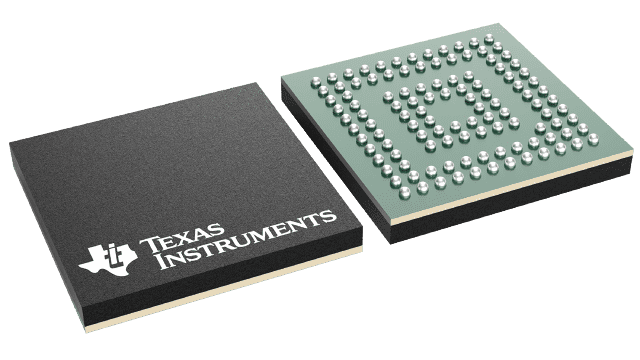

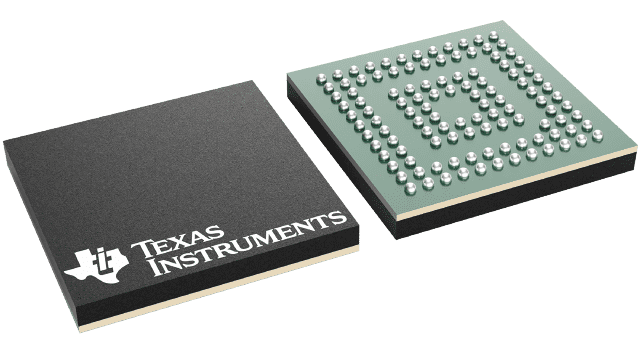

Texas Instruments MSP430F6635 Product Info

Parameters

CPU	MSP430
Frequency (MHz)	20
Flash memory (kByte)	256
RAM (kByte)	16
ADC type	12-bit SAR
Features	LCD, Real-time clock
UART	2
Number of ADC channels	12
SPI	4
USB	Yes
Hardware accelerators	0
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Communication interface	I2C, SPI, UART, USB
Operating system	BareMetal (No OS), TI RTOS
Nonvolatile memory (kByte)	256
Number of GPIOs	74
Number of I2Cs	2
Security	Secure debug

Package

LQFP (PZ)-100-256 mm² 16 x 16

Features

Low supply voltage range: 1.8 V to 3.6 V
Ultra-low power consumption
- Active mode (AM): All system clocks active: 270 µA/MHz at 8 MHz, 3.0 V, flash program execution (typical)
- Standby mode (LPM3): Watchdog with crystal and supply supervisor operational, full RAM retention, fast wakeup: 1.8 µA at 2.2 V, 2.1 µA at 3.0 V (typical)
- Shutdown real-time clock (RTC) mode (LPM3.5): Shutdown mode, active RTC with crystal: 1.1 µA at 3.0 V (typical)
- Shutdown mode (LPM4.5): 0.3 µA at 3.0 V (typical)
Wake up from standby mode in 3 µs (typical)
16-bit RISC architecture, extended memory, up to 20-MHz system clock
Flexible power-management system
- Fully integrated LDO with programmable regulated core supply voltage
- Supply voltage supervision, monitoring, and brownout
Unified clock system
- FLL control loop for frequency stabilization
- Low-power low-frequency internal clock source (VLO)
- Low-frequency trimmed internal reference source (REFO)
- 32-kHz crystals (XT1)
- High-frequency crystals up to 32 MHz (XT2)
Four 16-bit timers with 3, 5, or 7 capture/compare registers
Two universal serial communication interfaces (USCIs)
- USCI_A0 and USCI_A1 each support:
  - Enhanced UART supports automatic baud-rate detection
  - IrDA encoder and decoder
  - Synchronous SPI
- USCI_B0 and USCI_B1 each support:
  - I²C
  - Synchronous SPI
Full-speed universal serial bus (USB)
- Integrated USB-PHY
- Integrated 3.3-V and 1.8-V USB power system
- Integrated USB-PLL
- Eight input and eight output endpoints
12-bit analog-to-digital converter (ADC) with internal shared reference, sample-and-hold, and autoscan feature
Dual 12-bit digital-to-analog converters (DACs) with synchronization
Voltage comparator
Integrated liquid crystal display (LCD) driver with contrast control for up to 160 segments
Hardware multiplier supports 32-bit operations
Serial onboard programming, no external programming voltage needed
6-channel internal DMA
RTC module with supply voltage backup switch
Device Comparison summarizes the available family members

Low supply voltage range: 1.8 V to 3.6 V
Ultra-low power consumption
- Active mode (AM): All system clocks active: 270 µA/MHz at 8 MHz, 3.0 V, flash program execution (typical)
- Standby mode (LPM3): Watchdog with crystal and supply supervisor operational, full RAM retention, fast wakeup: 1.8 µA at 2.2 V, 2.1 µA at 3.0 V (typical)
- Shutdown real-time clock (RTC) mode (LPM3.5): Shutdown mode, active RTC with crystal: 1.1 µA at 3.0 V (typical)
- Shutdown mode (LPM4.5): 0.3 µA at 3.0 V (typical)
Wake up from standby mode in 3 µs (typical)
16-bit RISC architecture, extended memory, up to 20-MHz system clock
Flexible power-management system
- Fully integrated LDO with programmable regulated core supply voltage
- Supply voltage supervision, monitoring, and brownout
Unified clock system
- FLL control loop for frequency stabilization
- Low-power low-frequency internal clock source (VLO)
- Low-frequency trimmed internal reference source (REFO)
- 32-kHz crystals (XT1)
- High-frequency crystals up to 32 MHz (XT2)
Four 16-bit timers with 3, 5, or 7 capture/compare registers
Two universal serial communication interfaces (USCIs)
- USCI_A0 and USCI_A1 each support:
  - Enhanced UART supports automatic baud-rate detection
  - IrDA encoder and decoder
  - Synchronous SPI
- USCI_B0 and USCI_B1 each support:
  - I²C
  - Synchronous SPI
Full-speed universal serial bus (USB)
- Integrated USB-PHY
- Integrated 3.3-V and 1.8-V USB power system
- Integrated USB-PLL
- Eight input and eight output endpoints
12-bit analog-to-digital converter (ADC) with internal shared reference, sample-and-hold, and autoscan feature
Dual 12-bit digital-to-analog converters (DACs) with synchronization
Voltage comparator
Integrated liquid crystal display (LCD) driver with contrast control for up to 160 segments
Hardware multiplier supports 32-bit operations
Serial onboard programming, no external programming voltage needed
6-channel internal DMA
RTC module with supply voltage backup switch
Device Comparison summarizes the available family members

Description

The TI MSP430™ family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in 3 µs (typical).

The MSP430F663x devices are microcontrollers with a high-performance 12-bit ADC, a comparator, two USCIs, USB 2.0, a hardware multiplier, DMA, four 16-bit timers, an RTC module with alarm capabilities, an LCD driver, and up to 74 I/O pins.

For complete module descriptions, see the MSP430F5xx and MSP430F6xx Family Users Guide.
