ADS5401
  • ADS5401
  • ADS5401

ADS5401

ACTIVE

12-Bit, 800-MSPS Analog-to-Digital Converter (ADC)

Texas Instruments ADS5401 Product Info

1 April 2026 0

Parameters

Sample rate (max) (Msps)

800

Resolution (Bits)

12

Number of input channels

1

Interface type

DDR LVDS

Analog input BW (MHz)

1200

Features

High Performance

Rating

Catalog

Peak-to-peak input voltage range (V)

1

Power consumption (typ) (mW)

1200

Architecture

Pipeline

SNR (dB)

61.8

ENOB (Bits)

9.8

SFDR (dB)

74

Operating temperature range (°C)

-40 to 85

Input buffer

No

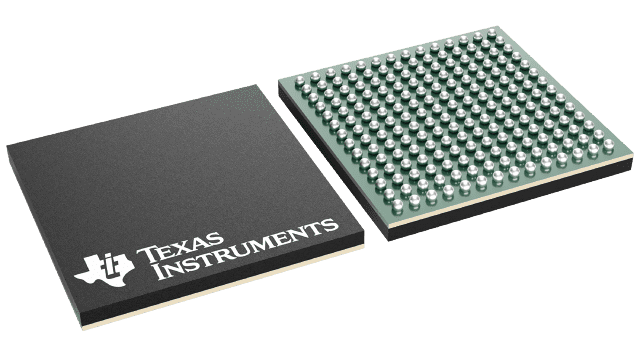

Package

NFBGA (ZAY)-196-144 mm² 12 x 12

Features

  • Single-Channel
  • 12-Bit Resolution
  • Maximum Clock Rate: 800 Msps
  • Low Swing Fullscale Input: 1.0 Vpp
  • Analog Input Buffer With High Impedance Input
  • Input Bandwidth (3 dB): > 1.2 GHz
  • Data Output Interface: DDR LVDS
  • Optional 2x Decimation With Lowpass or
    Highpass Filter
  • 196-Pin BGA Package (12 mm × 12 mm)
  • Single-Channel
  • 12-Bit Resolution
  • Maximum Clock Rate: 800 Msps
  • Low Swing Fullscale Input: 1.0 Vpp
  • Analog Input Buffer With High Impedance Input
  • Input Bandwidth (3 dB): > 1.2 GHz
  • Data Output Interface: DDR LVDS
  • Optional 2x Decimation With Lowpass or
    Highpass Filter
  • 196-Pin BGA Package (12 mm × 12 mm)

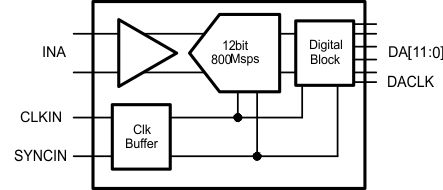

Description

The ADS5401 device is a high-linearity single-channel 12-bit, 800-Msps analog-to-digital converter (ADC) easing front-end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing a high-impedance input. Optionally the output data can be decimated by two. Designed for high SFDR, the ADC has low-noise performance and outstanding spurious-free dynamic range over a large input-frequency range. The device is available in a 196-pin BGA package and is specified over the full industrial temperature range (–40°C to 85°C).

The ADS5401 device is a high-linearity single-channel 12-bit, 800-Msps analog-to-digital converter (ADC) easing front-end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing a high-impedance input. Optionally the output data can be decimated by two. Designed for high SFDR, the ADC has low-noise performance and outstanding spurious-free dynamic range over a large input-frequency range. The device is available in a 196-pin BGA package and is specified over the full industrial temperature range (–40°C to 85°C).
