ADS5404
  • ADS5404
  • ADS5404

ADS5404

ACTIVE

Dual-Channel, 12-Bit, 500-MSPS Analog-to-Digital Converter (ADC)

Texas Instruments ADS5404 Product Info

1 April 2026 4

Parameters

Sample rate (max) (Msps)

500

Resolution (Bits)

12

Number of input channels

2

Interface type

DDR LVDS

Analog input BW (MHz)

1200

Features

High Performance

Rating

Catalog

Peak-to-peak input voltage range (V)

1

Power consumption (typ) (mW)

1600

Architecture

Pipeline

SNR (dB)

60.8

ENOB (Bits)

9.8

SFDR (dB)

77

Operating temperature range (°C)

-40 to 85

Input buffer

No

Package

NFBGA (ZAY)-196-144 mm² 12 x 12

Features

  • Dual Channel
  • 12-Bit Resolution
  • Maximum Clock Rate: 500 Msps
  • Low Swing Fullscale Input: 1.0 Vpp
  • Analog Input Buffer with High Impedance Input
  • Input Bandwidth (3 dB): >1.2 GHz
  • Data Output Interface: DDR LVDS

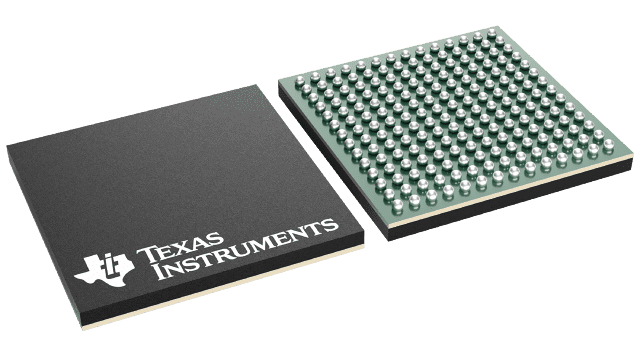

  • 196-Pin BGA Package (12×12mm)
  • Power Dissipation: 910 mW/ch
  • Performance at fin = 230 MHz IF
    • SNR: 60.6 dBFS
    • SFDR: 77 dBc
  • Performance at fin = 700 MHz IF
    • SNR: 59.4 dBFS
    • SFDR: 70 dBc
  • Dual Channel
  • 12-Bit Resolution
  • Maximum Clock Rate: 500 Msps
  • Low Swing Fullscale Input: 1.0 Vpp
  • Analog Input Buffer with High Impedance Input
  • Input Bandwidth (3 dB): >1.2 GHz
  • Data Output Interface: DDR LVDS
  • 196-Pin BGA Package (12×12mm)
  • Power Dissipation: 910 mW/ch
  • Performance at fin = 230 MHz IF
    • SNR: 60.6 dBFS
    • SFDR: 77 dBc
  • Performance at fin = 700 MHz IF
    • SNR: 59.4 dBFS
    • SFDR: 70 dBc

Description

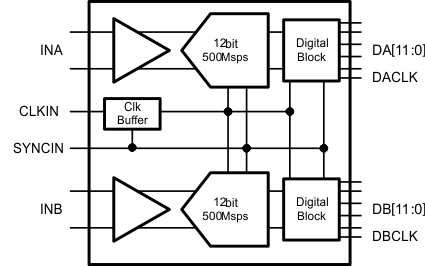

The ADS5404 is a high linearity dual channel 12-bit, 500 MSPS analog-to-digital converter (ADC) easing front end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing a high-impedance input. Optionally the output data can be decimated by two. Designed for high SFDR, the ADC has low-noise performance and outstanding spurious-free dynamic range over a large input-frequency range. The device is available in a 196-pin BGA package and is specified over the full industrial temperature range (–40°C to 85°C).
