ACTIVE
Drivers per package |
5 |
Receivers per package |
3 |
Logic voltage (min) (V) |
5 |
Data rate (max) (Mbps) |
0.12 |
Main supply voltage (nom) (V) |
5 |
ESD HBM (kV) |
15 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Vout (typ) (V) |
9 |

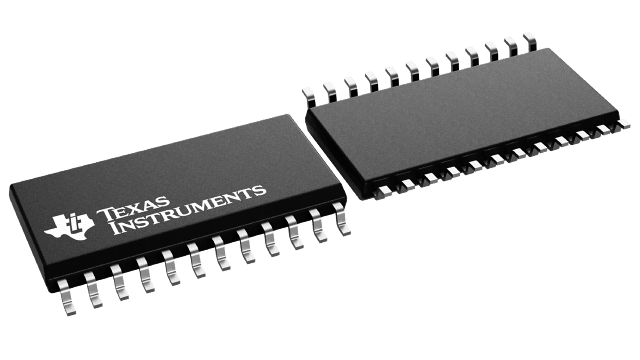

SOIC (DW)-24-159.65 mm² 15.5 x 10.3
The MAX207 consists of five line drivers, three line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V supply. The devices operate at data signaling rates up to 120 kbit/s and a maximum of 30-V/µs driver output slew rate.
