DAC53701-Q1
  • DAC53701-Q1
  • DAC53701-Q1

DAC53701-Q1

ACTIVE

Automotive, 10-bit 1-channel VOUT smart DAC with Hi-Z, EEPROM, waveform generator, comparator, GPIO

Texas Instruments DAC53701-Q1 Product Info

1 April 2026 0

Parameters

Resolution (Bits)

10

Number of DAC channels

1

Interface type

I2C

Output type

Buffered Voltage

Output voltage range (V)

0 to 5.5

INL (max) (±LSB)

1

Settling time (µs)

10

Reference type

Ext, Int

Architecture

String

Rating

Automotive

Features

EEPROM, Smart DAC

Sample/update rate (Msps)

0.025

Power consumption (typ) (mW)

0.36

Operating temperature range (°C)

-40 to 125

Product type

General-purpose DAC, Smart DAC

Package

WSON (DSG)-8-4 mm² 2 x 2

Features

  • AEC-Q100 qualified for automotive applications:
    • Temperature grade 1: –40°C to +125°C, T A
  • 1 LSB INL and DNL (10-bit and 8-bit)
  • Wide operating range
    • Power supply: 1.8 V to 5.5 V
  • General-purpose input (GPI) based function trigger
  • PMBus™ compatible I 2C interface
    • Standard, fast, and fast mode plus
    • Four target address options configured using the broadcast address
    • 1.62-V V IH with V DD = 5.5 V
  • User-programmable nonvolatile memory (NVM/EEPROM)
    • Save and recall all register settings
  • Programmable waveform generation: Square, triangular, and sawtooth
  • Pulse-width modulation (PWM) output using triangular waveform and FB pin
  • Digital slew rate control
  • Internal reference
  • Very low power: 0.2 mA at 1.8 V
  • Flexible start-up: High impedance or 10K-GND
  • Tiny package: 8-pin WSON (2 mm × 2 mm)
  • AEC-Q100 qualified for automotive applications:
    • Temperature grade 1: –40°C to +125°C, T A
  • 1 LSB INL and DNL (10-bit and 8-bit)
  • Wide operating range
    • Power supply: 1.8 V to 5.5 V
  • General-purpose input (GPI) based function trigger
  • PMBus™ compatible I 2C interface
    • Standard, fast, and fast mode plus
    • Four target address options configured using the broadcast address
    • 1.62-V V IH with V DD = 5.5 V
  • User-programmable nonvolatile memory (NVM/EEPROM)
    • Save and recall all register settings
  • Programmable waveform generation: Square, triangular, and sawtooth
  • Pulse-width modulation (PWM) output using triangular waveform and FB pin
  • Digital slew rate control
  • Internal reference
  • Very low power: 0.2 mA at 1.8 V
  • Flexible start-up: High impedance or 10K-GND
  • Tiny package: 8-pin WSON (2 mm × 2 mm)

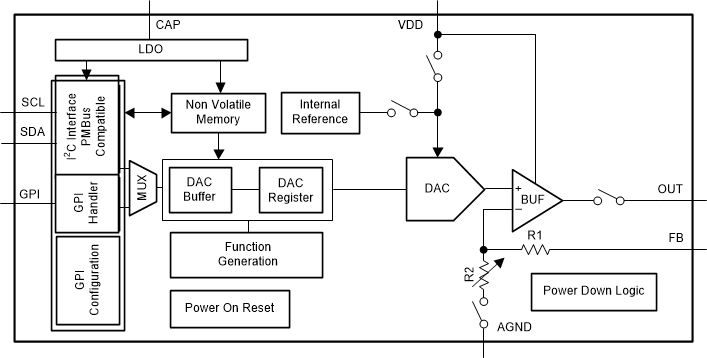

Description

The automotive-grade 10-bit DAC53701-Q1 and 8-bit DAC43701-Q1 (DACx3701-Q1) are a pin-compatible family of buffered voltage-output smart digital-to-analog converters (DACs). These devices consume very low power, and are available in a tiny 8-pin WSON package. The feature set combined with the tiny package and low power make the DACx3701-Q1 an excellent choice for applications such as automotive tail plus brake light, license plate light fade-in fade-out, and PWM expansion for interior light.

These devices have nonvolatile memory (NVM), an internal reference, a PMBus-compatible I 2C interface, and a general-purpose input. The DACx3701-Q1 operates with either an internal reference or with the power supply as a reference, and provides a full-scale output of 1.8 V to 5.5 V.

The DACx3701-Q1 are smart DAC devices because of the advanced integrated features. With a force-sense output, GPI based function trigger, PWM output, and NVM capabilities, smart DACs enable system performance and control without the use of software.

The automotive-grade 10-bit DAC53701-Q1 and 8-bit DAC43701-Q1 (DACx3701-Q1) are a pin-compatible family of buffered voltage-output smart digital-to-analog converters (DACs). These devices consume very low power, and are available in a tiny 8-pin WSON package. The feature set combined with the tiny package and low power make the DACx3701-Q1 an excellent choice for applications such as automotive tail plus brake light, license plate light fade-in fade-out, and PWM expansion for interior light.

These devices have nonvolatile memory (NVM), an internal reference, a PMBus-compatible I 2C interface, and a general-purpose input. The DACx3701-Q1 operates with either an internal reference or with the power supply as a reference, and provides a full-scale output of 1.8 V to 5.5 V.

The DACx3701-Q1 are smart DAC devices because of the advanced integrated features. With a force-sense output, GPI based function trigger, PWM output, and NVM capabilities, smart DACs enable system performance and control without the use of software.
