AFE7954
  • AFE7954
  • AFE7954
  • AFE7954

AFE7954

ACTIVE

four-channel, 600-MHz to 12-GHz, RF-sampling AFE, 12-GSPS DACs, 2.4-GHz max IBW

Texas Instruments AFE7954 Product Info

1 April 2026 4

Parameters

Frequency (min) (MHz)

600

Frequency (max) (MHz)

12000

Resolution (Bits)

14

Sample/update rate (Msps)

12000

Number of DAC channels

4

Interpolation

12x, 16x, 24x, 32x, 36x, 48x, 4x, 64x, 6x, 72x, 8x, 96x

Power consumption (typ) (mW)

4400

Operating temperature range (°C)

-40 to 85

Rating

Catalog

Package

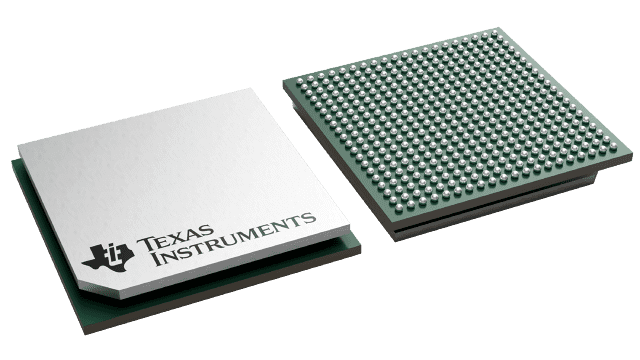

FCBGA (ABJ)-400-289 mm² 17 x 17

Features

  • Request full data sheet
  • Quad RF sampling 12-GSPS DACs
  • Maximum RF signal bandwidth:
    • 4TX: 1200 MHz or
    • 2TX: 2400 MHz
  • RF frequency range: 600 MHz - 12 GHz
  • Digital step attenuators (DSA):
    • TX: 40 dB range, 0.125-dB steps
  • Single or dual-band DUCs
  • 16x NCOs per TX
  • Optional Internal PLL/VCO for DAC or external clock at DAC sample rate
  • SerDes data interface:
    • JESD204B and JESD204C compatible
    • 8 SerDes receivers up to 29.5 Gbps
    • Subclass 1 multi-device synchronization
  • Package: 17-mm × 17-mm FCBGA, 0.8-mm pitch
  • Request full data sheet
  • Quad RF sampling 12-GSPS DACs
  • Maximum RF signal bandwidth:
    • 4TX: 1200 MHz or
    • 2TX: 2400 MHz
  • RF frequency range: 600 MHz - 12 GHz
  • Digital step attenuators (DSA):
    • TX: 40 dB range, 0.125-dB steps
  • Single or dual-band DUCs
  • 16x NCOs per TX
  • Optional Internal PLL/VCO for DAC or external clock at DAC sample rate
  • SerDes data interface:
    • JESD204B and JESD204C compatible
    • 8 SerDes receivers up to 29.5 Gbps
    • Subclass 1 multi-device synchronization
  • Package: 17-mm × 17-mm FCBGA, 0.8-mm pitch

Description

The AFE7954 is a high performance, wide bandwidth quad channel RF sampling DAC. With operation up to 12 GHz, this device enables direct RF sampling in the L, S, C and X-band frequency ranges without the need for additional frequency conversions stages. This improvement in density and flexibility enables high-channel-count, multi-mission systems.

The signal paths support interpolation and digital up conversion options that deliver up to 1200 MHz of signal bandwidth for four DACs (TX) or 2400 MHz for two DACs. The output of the DUCs drives a 12-GSPS DAC (digital to analog converter) with a mixed mode output option to enhance 2nd Nyquist operation. The DAC output includes a variable gain amplifier (TX DSA) with 40-dB range and 1-dB analog and 0.125-dB digital steps.
