Texas Instruments LP3907-Q1 Product Info

Parameters

Processor supplier	Generic
Processor name	Generic
Product type	Processor and FPGA
Regulated outputs (#)	4
Step-down DC/DC converter	2
Step-up DC/DC converter	0
LDO	2
Vin (min) (V)	2.8
Vin (max) (V)	5.5
Vout (min) (V)	0.8
Vout (max) (V)	3.5
Iout (max) (A)	1
Configurability	Factory programmable, Software configurable
Features	Comm control, Dynamic voltage scaling, Enable, Overcurrent protection, Power good, Synchronous rectification, Thermal shutdown, UVLO adjustable
Rating	Automotive
Operating temperature range (°C)	-40 to 125
Step-down DC/DC controller	0
Step-up DC/DC controller	0
Iq (typ) (mA)	0.04
Switching frequency (max) (kHz)	2100
Shutdown current (ISD) (typ) (µA)	3
Switching frequency (typ) (kHz)	2100

Package

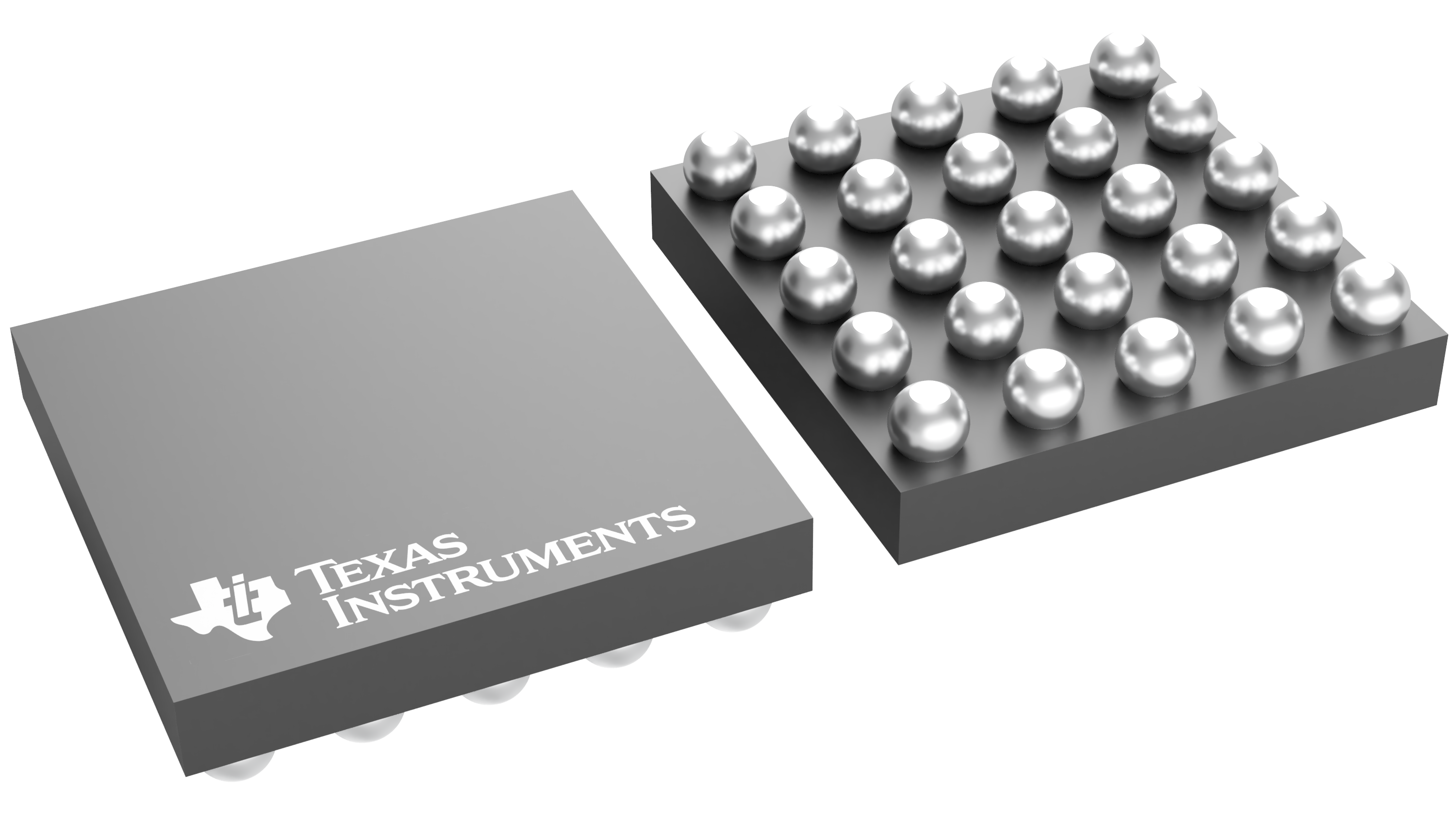

DSBGA (YZR)-25-7.5625 mm² 2.75 x 2.75

Features

Qualified for Automotive Applications
AEC Q100-Qualified With the Following Results
- Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature
Input Voltage Range: 2.8 V to 5.5 V
Compatible with Advanced Applications Processors and FPGAs
2 LDOs for Powering Internal Processor Functions and I/Os
High-Speed Serial Interface for Independent Control of Device Functions and Settings
Precision Internal Reference
Thermal Overload Protection
Current Overload Protection
Software Programmable Regulators
External Power-On-Reset Function for Buck1 and Buck2 (Power Good with Delay Function)
Undervoltage Lockout Detector to Monitor Input Supply Voltage
Step-Down DC-DC Converters (Buck)
- Programmable V_OUT from:
  - Buck1 : 0.8 V–2 V at 1 A
  - Buck2 : 1 V–3.5 V at 600 mA

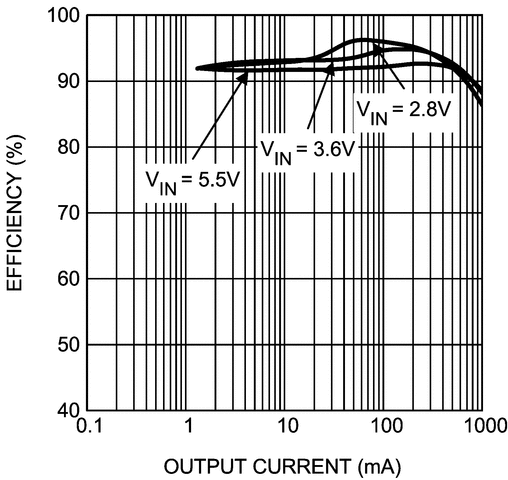

- Up to 96% Efficiency
- 2.1-MHz PWM Switching Frequency
- PWM-to-PFM Automatic Mode Change
  Under Low Loads
- ±3% Output Voltage Accuracy
- Automatic Soft Start
Linear Regulators (LDO)
- Programmable V_OUT of 1 V to 3.5 V
- 300-mA Output Current
- 30-mV (typical) Dropout

Qualified for Automotive Applications
AEC Q100-Qualified With the Following Results
- Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature
Input Voltage Range: 2.8 V to 5.5 V
Compatible with Advanced Applications Processors and FPGAs
2 LDOs for Powering Internal Processor Functions and I/Os
High-Speed Serial Interface for Independent Control of Device Functions and Settings
Precision Internal Reference
Thermal Overload Protection
Current Overload Protection
Software Programmable Regulators
External Power-On-Reset Function for Buck1 and Buck2 (Power Good with Delay Function)
Undervoltage Lockout Detector to Monitor Input Supply Voltage
Step-Down DC-DC Converters (Buck)
- Programmable V_OUT from:
  - Buck1 : 0.8 V–2 V at 1 A
  - Buck2 : 1 V–3.5 V at 600 mA
- Up to 96% Efficiency
- 2.1-MHz PWM Switching Frequency
- PWM-to-PFM Automatic Mode Change
  Under Low Loads
- ±3% Output Voltage Accuracy
- Automatic Soft Start
Linear Regulators (LDO)
- Programmable V_OUT of 1 V to 3.5 V
- 300-mA Output Current
- 30-mV (typical) Dropout

Description

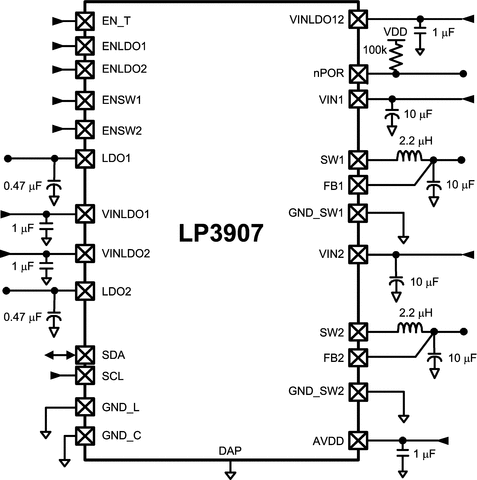

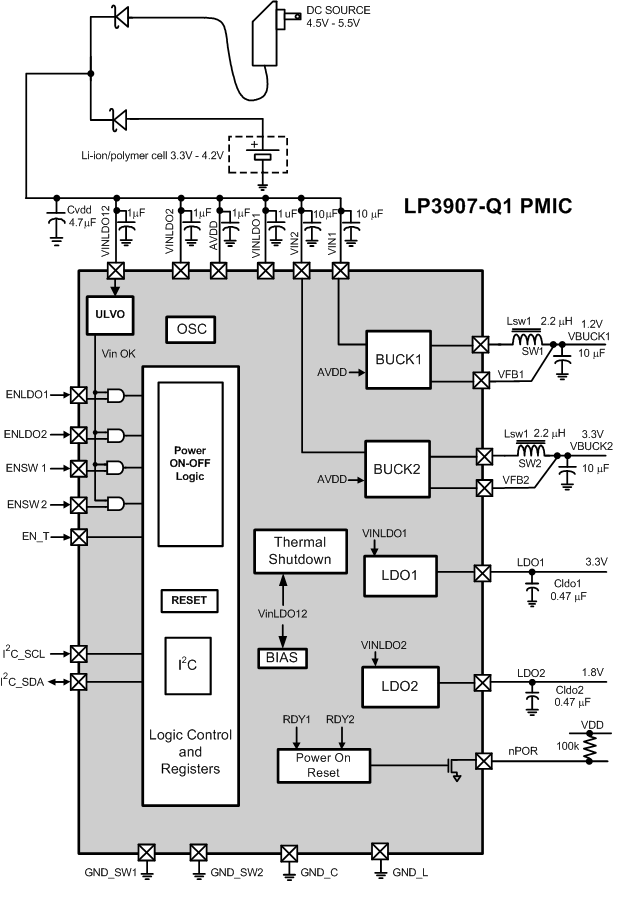

The LP3907-Q1 device is a multi-function, programmable power management unit (PMU) optimized for low-power FPGAs, microprocessors, and DSPs. This device integrates two highly efficient 1-A, 600-mA step-down DC-DC converters with dynamic voltage scaling (DVS), two 300-mA linear regulators, and a 400-kHz I²C interface to allow a host controller access to the internal control registers of the device. The LP3907-Q1 additionally features programmable power-on sequencing. This device is an Automotive-Grade Product that is AECQ-100 Grade 1 Qualified.

Features include programmable power-on sequencing, communication control (I2C), dynamic voltage scaling, overcurrent protection, Power Good, synchronous rectification, thermal shutdown, and undervoltage lockout. For applications requiring light loads, the high-efficiency synchronous switching buck regulators enter PFM mode and operate with reduced switching frequency and supply current to maintain high efficiency at very light loads.

The LP3907-Q1 device is a multi-function, programmable power management unit (PMU) optimized for low-power FPGAs, microprocessors, and DSPs. This device integrates two highly efficient 1-A, 600-mA step-down DC-DC converters with dynamic voltage scaling (DVS), two 300-mA linear regulators, and a 400-kHz I²C interface to allow a host controller access to the internal control registers of the device. The LP3907-Q1 additionally features programmable power-on sequencing. This device is an Automotive-Grade Product that is AECQ-100 Grade 1 Qualified.

Features include programmable power-on sequencing, communication control (I2C), dynamic voltage scaling, overcurrent protection, Power Good, synchronous rectification, thermal shutdown, and undervoltage lockout. For applications requiring light loads, the high-efficiency synchronous switching buck regulators enter PFM mode and operate with reduced switching frequency and supply current to maintain high efficiency at very light loads.
