TPS7A05
  • TPS7A05
  • TPS7A05
  • TPS7A05
  • TPS7A05
  • TPS7A05

TPS7A05

ACTIVE

200mA, ultra-low-IQ, high-accuracy, low-dropout voltage regulator with enable

Texas Instruments TPS7A05 Product Info

1 April 2026 4

Parameters

Rating

Catalog

Vin (max) (V)

5.5

Vin (min) (V)

1.4

Iout (max) (A)

0.2

Output options

Fixed Output

Vout (max) (V)

1, 1.1, 1.2, 1.5, 1.8, 2, 2.2, 2.5, 2.7, 2.8, 2.85, 3, 3.1, 3.3

Vout (min) (V)

0.8

Fixed output options (V)

0.8, 1, 1.1, 1.2, 1.5, 1.8, 1.82, 1.825, 2, 2.2, 2.5, 2.7, 2.8, 2.85, 3, 3.1, 3.3

Noise (µVrms)

180

PSRR at 100 KHz (dB)

15.4

Iq (typ) (mA)

0.001

Features

Enable, Foldback Overcurrent protection, Output discharge

Thermal resistance θJA (°C/W)

144.1, 185.6, 198, 198.0, 267.3

Load capacitance (min) (µF)

0.47

Regulated outputs (#)

1

Accuracy (%)

2

Dropout voltage (Vdo) (typ) (mV)

204

Operating temperature range (°C)

-40 to 125

Package

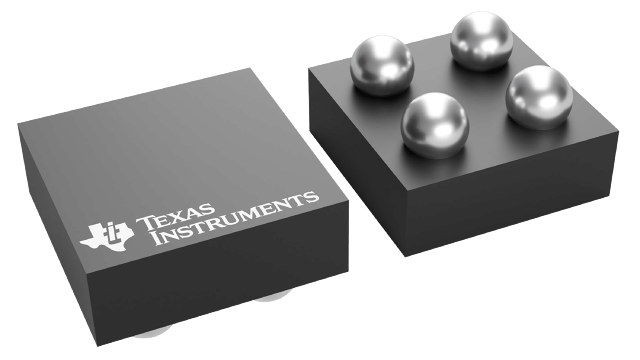

DSBGA (YKA)-4-0.788544 mm² 0.888 x 0.888

Features

  • Ultralow IQ: 1 µA (typ), 3 µA (max)
    • IGND: 6 µA (typ) at 200 mA
  • Excellent transient response
  • Packages:
    • 1.0-mm × 1.0-mm X2SON (4)
    • 0.65-mm × 0.65-mm DSBGA (4)
    • SOT-23 (5)
    • SOT-23 (3)
  • Input voltage range: 1.4 V to 5.5 V
  • Output accuracy: 1% typical, 3% maximum
  • Available in fixed-output voltage:
    • 0.8 V to 3.3 V
  • Very low dropout:
    • 235 mV (max) at 200 mA (3.3 VOUT)
  • Active output discharge
  • Foldback current limit
  • Stable with a 0.47-µF or larger capacitor
  • Ultralow IQ: 1 µA (typ), 3 µA (max)
    • IGND: 6 µA (typ) at 200 mA
  • Excellent transient response
  • Packages:
    • 1.0-mm × 1.0-mm X2SON (4)
    • 0.65-mm × 0.65-mm DSBGA (4)
    • SOT-23 (5)
    • SOT-23 (3)
  • Input voltage range: 1.4 V to 5.5 V
  • Output accuracy: 1% typical, 3% maximum
  • Available in fixed-output voltage:
    • 0.8 V to 3.3 V
  • Very low dropout:
    • 235 mV (max) at 200 mA (3.3 VOUT)
  • Active output discharge
  • Foldback current limit
  • Stable with a 0.47-µF or larger capacitor

Description

The TPS7A05 is an ultra-small, low quiescent current low-dropout regulator (LDO) that can source 200 mA with excellent transient performance. This device has an output range of 0.8 V to 3.3 V with a typical 1% accuracy.

The TPS7A05, with ultralow IQ (1 µA), consumes very-low quiescent current for extending battery life in battery-powered applications. The device can be operated from rechargeable Li-Ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-MnO2, as well as two- or three-cell alkaline batteries.

The TPS7A05 is available with an active pulldown circuit to quickly discharge the output when disabled.

The TPS7A05 is fully specified for TJ = –40°C to +125°C operation, and is available in standard X2SON (DQN), SOT-23 (DBV and DBZ), and DSBGA (YKA) packages.
