LMZ20501
  • LMZ20501

LMZ20501

ACTIVE

2.7V to 5.5V, 1A High Density Nano Module

Texas Instruments LMZ20501 Product Info

1 April 2026 0

Parameters

Rating

Catalog

Topology

Buck, Synchronous Buck

Iout (max) (A)

1

Vin (max) (V)

5.5

Vin (min) (V)

2.7

Vout (max) (V)

3.6

Vout (min) (V)

0.8

Features

EMI Tested, Enable, Light Load Efficiency, Power good

Operating temperature range (°C)

-40 to 125

Switch current limit (typ) (A)

1.7

Type

Converter (Integrated Switch), DC/DC converter, Module

Duty cycle (max) (%)

100

Control mode

current mode, current mode control

Switching frequency (min) (kHz)

2500

Switching frequency (max) (kHz)

3200

Package

USIP (SIL)-8-See data sheet

Features

  • Integrated inductor
  • Miniature 3.5-mm × 3.5-mm × 1.75-mm package
  • 1-A maximum load current
  • Input voltage range of 2.7 V to 5.5 V
  • Adjustable output voltage range of 0.8 V to 3.6 V
  • ± 1% feedback tolerance over temperature
  • 2.4-µA (maximum) quiescent current in shutdown
  • 3-MHz fixed PWM switching frequency
  • –40°C to 125°C junction temperature range
  • Power-good flag function
  • Pin-selectable switching modes
  • Internal compensation and soft start
  • Current limit, thermal shutdown, and UVLO protection
  • Create a custom design using the LMZ20501 with WEBENCH Power Designer
  • Integrated inductor
  • Miniature 3.5-mm × 3.5-mm × 1.75-mm package
  • 1-A maximum load current
  • Input voltage range of 2.7 V to 5.5 V
  • Adjustable output voltage range of 0.8 V to 3.6 V
  • ± 1% feedback tolerance over temperature
  • 2.4-µA (maximum) quiescent current in shutdown
  • 3-MHz fixed PWM switching frequency
  • –40°C to 125°C junction temperature range
  • Power-good flag function
  • Pin-selectable switching modes
  • Internal compensation and soft start
  • Current limit, thermal shutdown, and UVLO protection
  • Create a custom design using the LMZ20501 with WEBENCH Power Designer

Description

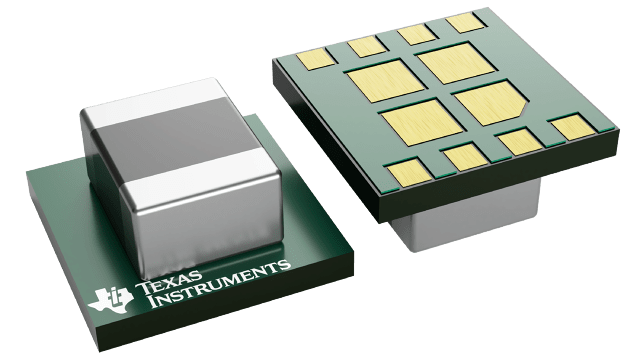

The LMZ20501 nano module regulator is an easy-to-use synchronous step-down DC/DC converter capable of driving up to 1 A of load from an input of up to 5.5 V, with exceptional efficiency and output accuracy in a very small solution size. The innovative package contains the regulator and inductor in a small 3.5 mm × 3.5 mm × 1.75 mm volume, thus saving board space and eliminating the time and expense of inductor selection. The LMZ20501 requires only five external components and has a pin-out designed for simple, optimum PCB layout. The device provides for an easy to use complete design with a minimum number of external components and the TI WEBENCH design tool. TI’s WEBENCH tool includes features such as external component calculation, electrical simulation, and WebTherm. For soldering information, see SNOA401.

The LMZ20501 nano module regulator is an easy-to-use synchronous step-down DC/DC converter capable of driving up to 1 A of load from an input of up to 5.5 V, with exceptional efficiency and output accuracy in a very small solution size. The innovative package contains the regulator and inductor in a small 3.5 mm × 3.5 mm × 1.75 mm volume, thus saving board space and eliminating the time and expense of inductor selection. The LMZ20501 requires only five external components and has a pin-out designed for simple, optimum PCB layout. The device provides for an easy to use complete design with a minimum number of external components and the TI WEBENCH design tool. TI’s WEBENCH tool includes features such as external component calculation, electrical simulation, and WebTherm. For soldering information, see SNOA401.
