0
ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
12 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |

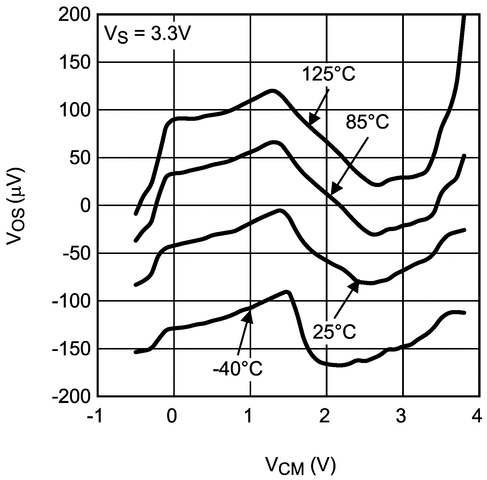

Vos (offset voltage at 25°C) (max) (mV) |
0.5 |
Offset drift (typ) (µV/°C) |
0.35 |
Input bias current (max) (pA) |
10 |
GBW (typ) (MHz) |
4.5 |
Slew rate (typ) (V/µs) |
2.5 |
Rail-to-rail |
In, Out |
Iq per channel (typ) (mA) |
0.96 |
Vn at 1 kHz (typ) (nV√Hz) |
20 |
CMRR (typ) (dB) |
106 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (A) |
0.033 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.2 |
Input common mode headroom (to positive supply) (typ) (V) |
0.2 |
Output swing headroom (to negative supply) (typ) (V) |
0.038 |
Output swing headroom (to positive supply) (typ) (V) |
-0.032 |
THD + N at 1 kHz (typ) (%) |
0.003 |
SOIC (D)-14-51.9 mm² 8.65 x 6

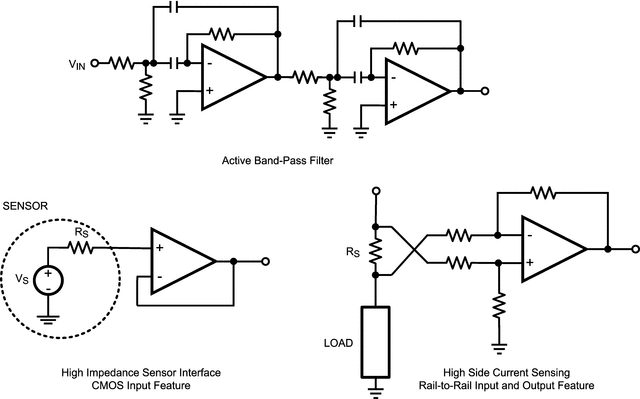

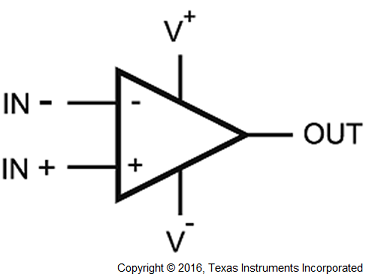

The LMV84x-Q1 devices are low-voltage and low-power operational amplifiers that operate with supply voltages ranging from 2.7 V to 12 V and have rail-to-rail input and output capability. Their low offset voltage, low supply current, and CMOS inputs make them ideal for high impedance sensor interface and battery-powered applications.
The single LMV841-Q1 is offered in the space-saving 5-pin SC70 package, the dual LMV842-Q1 in the 8-pin VSSOP and 8-pin SOIC packages, and the quad LMV844-Q1 in the 14-pin TSSOP and 14-pin SOIC packages. These small packages are ideal solutions for area-constrained PCBs and portable electronics.
The LMV841-Q1, LMV842-Q1, and LMV844-Q1 incorporate enhanced manufacturing and support processes for the automotive market, including defect detection methodologies. Reliability qualification is compliant with the requirements and temperature grades defined in the AEC-Q100 standard.
