ACTIVE
Audio input type |
Analog Input |
Architecture |
Class-AB |
Speaker channels (max) |
Mono |
Control interface |
Hardware |
Output power (W) |
0.35 |
Power stage supply (max) (V) |
5.5 |
Power stage supply (min) (V) |
2 |
THD + N at 1 kHz (%) |
1 |
Load (min) (Ω) |
8 |
Analog supply voltage (min) (V) |
2 |
Analog supply voltage (max) (V) |
5.5 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
SOIC (D)-8-29.4 mm² 4.9 x 6
All trademarks are the property of their respective owners. Boomer is a trademark of Texas Instruments.
The LM4818 is a mono bridged power amplifier that is capable of delivering 350mWRMS output power into a 16Ω load or 300mWRMS output power into an 8Ω load with 10% THD+N from a 5V power supply.
The LM4818 Boomer audio power amplifier is designed specifically to provide high quality output power and minimize PCB area with surface mount packaging and a minimal amount of external components. Since the LM4818 does not require output coupling capacitors, bootstrap capacitors or snubber networks, it is optimally suited for low-power portable applications.

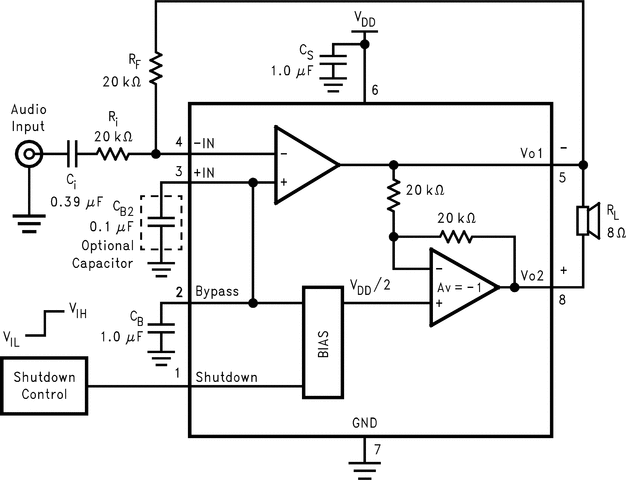

The closed loop response of the unity-gain stable LM4818 can be configured using external gain-setting resistors. The device is available in SOIC package type to suit various applications.
