ACTIVE
Audio input type |
Analog Input |
Architecture |
Class-AB |
Speaker channels (max) |
Stereo |
Control interface |
Hardware |
Output power (W) |
2 |
Power stage supply (max) (V) |
5.5 |
Power stage supply (min) (V) |
4 |
THD + N at 1 kHz (%) |
0.06 |
Load (min) (Ω) |
3 |
Analog supply voltage (min) (V) |
4 |
Analog supply voltage (max) (V) |
5.5 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
HTSSOP (PWP)-24-49.92 mm² 7.8 x 6.4
Speakers

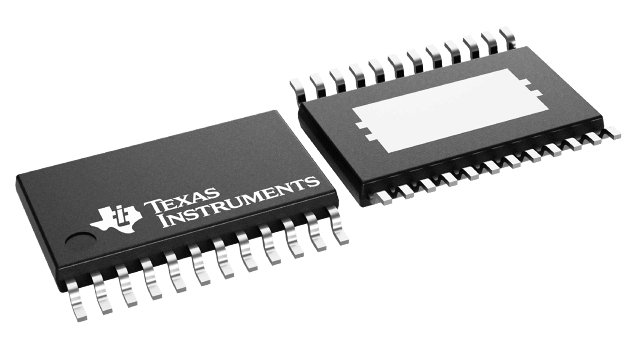

The TPA6011A4 is a stereo audio power amplifier that drives 3 W/channel of continuous RMS power into a 3- load. Advanced dc volume control minimizes external components and allows BTL (speaker) volume control and SE (headphone) volume control. Notebook and pocket PCs benefit from the integrated feature set that minimizes external components without sacrificing functionality.
To simplify design, the speaker volume level is adjusted by applying a dc voltage to the VOLUME terminal. Likewise, the delta between speaker volume and headphone volume can be adjusted by applying a dc voltage to the SEDIFF terminal. To avoid an unexpected high volume level through the headphones, a third terminal, SEMAX, limits the headphone volume level when a dc voltage is applied. Finally, to ensure a smooth transition between active and shutdown modes, a fade mode ramps the volume up and down.
