0
ACTIVE
Rating |
Automotive |
Vin (max) (V) |
40 |
Vin (min) (V) |
4 |
Iout (max) (A) |
0.05 |
Output options |
Fixed Output |
Vout (max) (V) |
3.46, 5, 5.25 |
Vout (min) (V) |
3.14, 3.3, 4.75 |
Fixed output options (V) |
3.3, 5 |
Iq (typ) (mA) |
0.02 |
Thermal resistance θJA (°C/W) |
140 |
Load capacitance (min) (µF) |
10, 22 |
Regulated outputs (#) |
1 |
Accuracy (%) |
3, 5 |

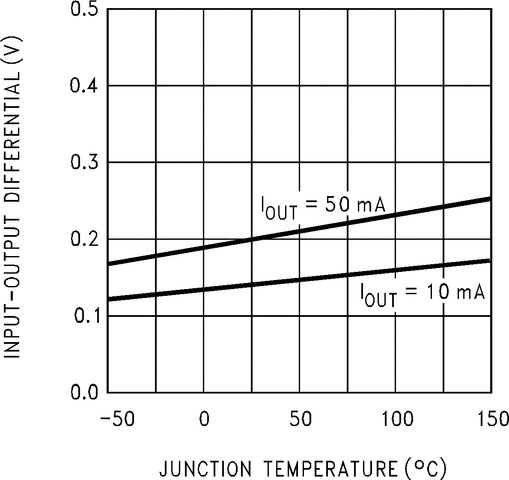

Dropout voltage (Vdo) (typ) (mV) |
200 |
Operating temperature range (°C) |
-40 to 125 |
SOIC (D)-8-29.4 mm² 4.9 x 6
All trademarks are the property of their respective owners.
The LM9036Q ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 25µA Ground Pin current at a 0.1mA load, the LM9036Q is ideally suited for automotive and other battery operated systems. The LM9036Q retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown. The LM9036Q has a 40V maximum operating voltage limit, a −40°C to +125°C operating temperature range, and ±5% output voltage tolerance over the entire output current, input voltage, and temperature range.
