ACTIVE
Resolution (Bits) |
16 |
Sample rate (max) (ksps) |
1250 |
Number of input channels |
1 |
Interface type |
Byte-Wide, Parallel |
Architecture |
SAR |
Input type |
Differential |
Rating |
Catalog |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
4.2 |
Input voltage range (min) (V) |
4.2 |
Features |
Oscillator |
Operating temperature range (°C) |
-40 to 85 |
Power consumption (typ) (mW) |
155 |
Analog supply voltage (min) (V) |
4.75 |
Analog supply voltage (max) (V) |
5.25 |
SNR (dB) |
90 |
Digital supply (min) (V) |
2.7 |
Digital supply (max) (V) |
5.25 |
TQFP (PFB)-48-81 mm² 9 x 9

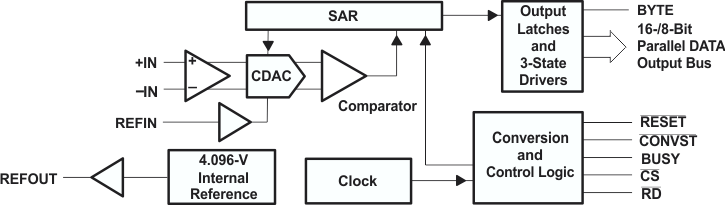

The ADS8406 is a 16-bit, 1.25 MHz A/D converter with an internal 4.096-V reference. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8406 offers a full 16-bit interface and an 8-bit option where data is read using two 8-bit read cycles.

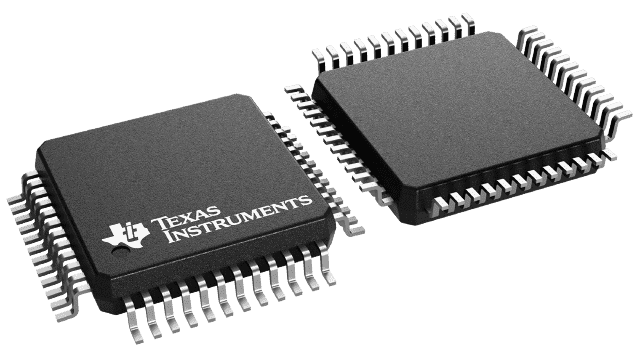

The ADS8406 has a pseudo-bipolar, fully differential input. It is available in a 48-lead TQFP package and is characterized over the industrial 40°C to 85°C temperature range.
