Texas Instruments LM73606-Q1 Product Info

Parameters

Rating	Automotive
Topology	Buck
Iout (max) (A)	6
Vin (max) (V)	36
Vin (min) (V)	3.5
Vout (max) (V)	34
Vout (min) (V)	1
Features	Adjustable soft start, Enable, Forced PWM, Frequency synchronization, Light-load efficiency, Overcurrent protection, Power good, Prebias startup, Synchronous rectification, Tracking, UVLO fixed, Wettable flanks package
Control mode	current mode
Operating temperature range (°C)	-40 to 125
Iq (typ) (A)	0.000015
Duty cycle (max) (%)	96

Package

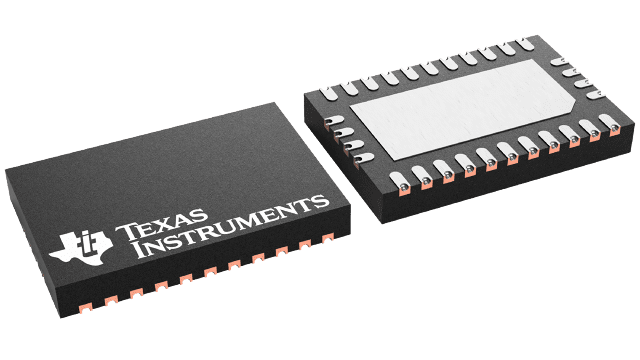

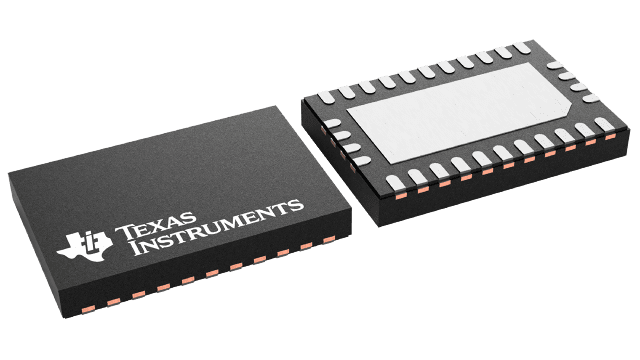

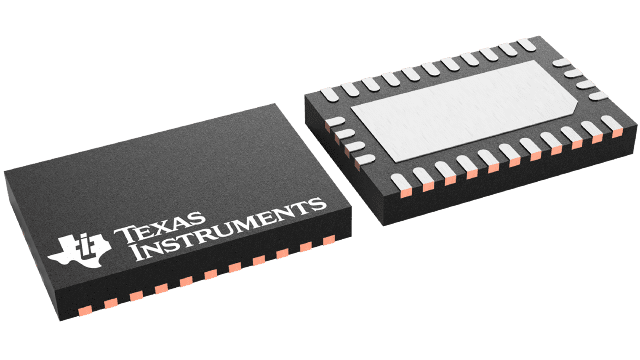

WQFN (RNP)-30-24 mm² 6 x 4

Features

AEC-Q100-qualified for automotive applications
- Device temperature grade 1: –40°C to +125°C ambient operating temperature
- Device HBM ESD classification level 2 kV
- Device CDM ESD classification level C5
Wettable flanks QFN package (WQFN)
Low EMI and low switching noise
Low quiescent current
- 0.8 µA in shutdown (typical)
- 15 µA in active mode with no load (typical)
Wide voltage conversion range:
- t_ON-MIN = 60 ns (typical)
- t_OFF-MIN = 70 ns (typical)
Low MOSFET ON-resistance:
- R_{DS_ON_HS} = 53 mΩ (typical)
- R_{DS_ON_LS} = 31 mΩ (typical)
Adjustable frequency range: 350 kHz to 2.2 MHz
Pin-selectable auto mode or forced PWM mode
Start-up into pre-biased load, fixed or adjustable soft-start time, and tracking
Synchronizable to external clock, internal compensation, power-good flag, and precision enable
Cycle-by-cycle current limiting, hiccup, UVLO, and thermal shutdown protections
Create a custom design with the WEBENCH power designer using LM73605-Q1 or LM73606-Q1

AEC-Q100-qualified for automotive applications
- Device temperature grade 1: –40°C to +125°C ambient operating temperature
- Device HBM ESD classification level 2 kV
- Device CDM ESD classification level C5
Wettable flanks QFN package (WQFN)
Low EMI and low switching noise
Low quiescent current
- 0.8 µA in shutdown (typical)
- 15 µA in active mode with no load (typical)
Wide voltage conversion range:
- t_ON-MIN = 60 ns (typical)
- t_OFF-MIN = 70 ns (typical)
Low MOSFET ON-resistance:
- R_{DS_ON_HS} = 53 mΩ (typical)
- R_{DS_ON_LS} = 31 mΩ (typical)
Adjustable frequency range: 350 kHz to 2.2 MHz
Pin-selectable auto mode or forced PWM mode
Start-up into pre-biased load, fixed or adjustable soft-start time, and tracking
Synchronizable to external clock, internal compensation, power-good flag, and precision enable
Cycle-by-cycle current limiting, hiccup, UVLO, and thermal shutdown protections
Create a custom design with the WEBENCH power designer using LM73605-Q1 or LM73606-Q1

Description

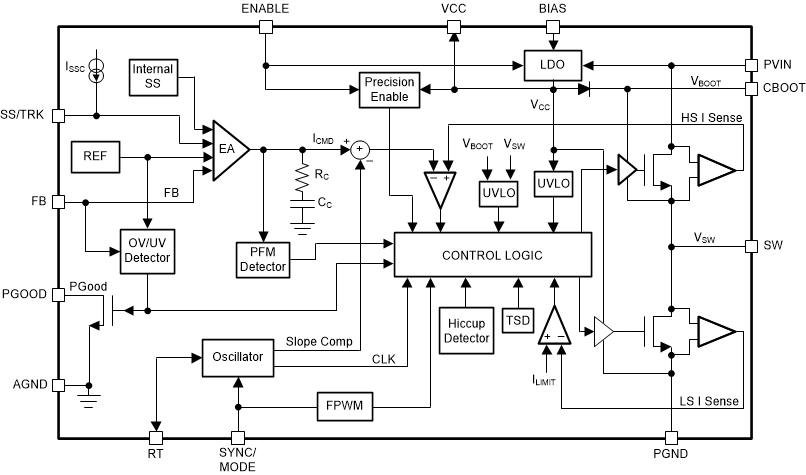

The LM73605-Q1/LM73606-Q1family of devices are easy-to-use synchronous step-down DC/DC converters capable of driving up to 5 A (LM73605-Q1)or 6 A (LM73606-Q1) of load current from a supply voltage ranging from 3.5 V to 36 V. The LM73605-Q1/LM73606-Q1 provide exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization to an external clock, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load and optional external bias improve efficiency over the entire load range. The family requires few external components and has a pinout designed for simple PCB layout with optimal EMI and thermal performance. Protection features include thermal shutdown, input undervoltage lookout, cycle-cy-cycle current limiting, and hiccup short-citcuit protection. The LM73605-Q1 and LM73606-Q1 devices are pin-to-pin compatible for easy current scaling.
