ACTIVE
Rating |
Catalog |
Topology |
Boost |
Vin (max) (V) |
14 |
Vin (min) (V) |
2.7 |
Vout (max) (V) |
28 |
Vout (min) (V) |
4 |
Switch current limit (typ) (A) |
1.25 |
Features |
Enable, Light-load efficiency, Nonsynchronous rectification |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.0021 |
Duty cycle (max) (%) |
88 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

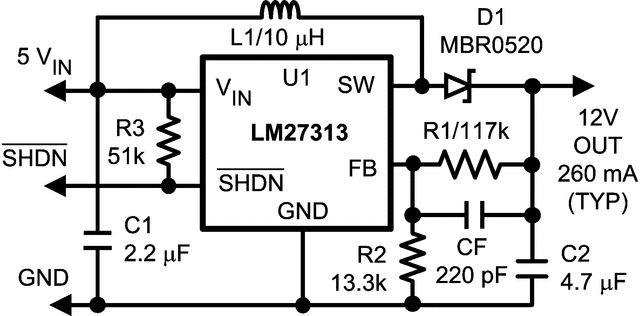

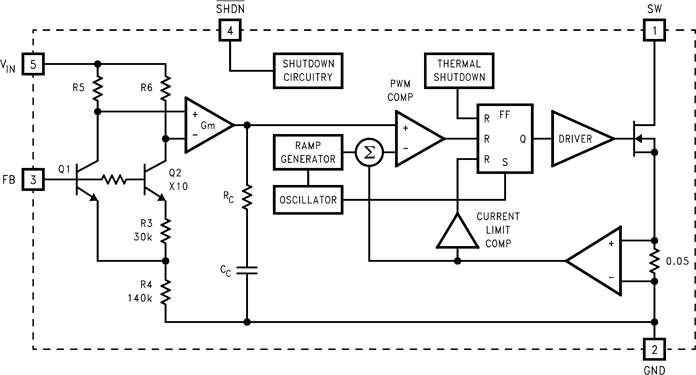

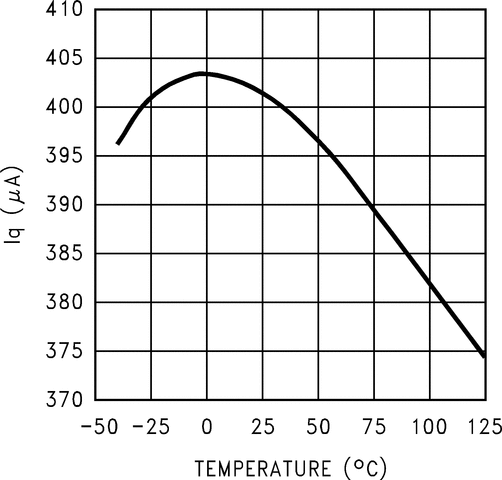

The LM27313/-Q1 switching regulator is a current-mode boost converter with a fixed operating frequency of 1.6 MHz.
The use of the SOT-23 package, made possible by the minimal losses of the 800-mA switch, and the small inductors and capacitors result in extremely high power density. The 30-V internal switch makes these solutions perfect for boosting to voltages of 5 V to 28 V.
This device has a logic-level shutdown pin that can be used to reduce quiescent current and extend battery life.
Protection is provided through cycle-by-cycle current limiting and thermal shutdown. Internal compensation simplifies design and reduces component count.
