ACTIVE
Number of channels |
1 |
Vrwm (V) |
24 |
Bi-/uni-directional |
Bi-directional |
Package name |
SOD323 |
Peak pulse power (8/20 μs) (max) (W) |
159 |
IO capacitance (typ) (pF) |
3 |
IEC 61000-4-2 contact (±V) |
30000 |
IEC 61000-4-5 (A) |
3.5 |
Features |
ESD Protection |
Clamping voltage (V) |
40 |
Dynamic resistance (typ) |
0.45 |
Interface type |
LIN |
Breakdown voltage (min) (V) |
25.5 |
IO leakage current (max) (nA) |
50 |
Rating |
Catalog |
Operating temperature range (°C) |
-50 to 150 |
SOT (DYF)-2-3.445 mm² 2.65 x 1.3
Robust surge protection:
IEC 61000-4-5 (8/20 µs): 4.3 A

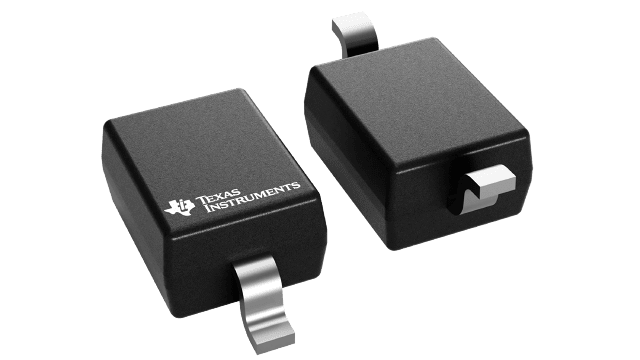

The ESD1LIN24 is a single-channel low capacitance bidirectional ESD protection device for local interconnect network (LIN). This device is rated to dissipate contact ESD strikes beyond the maximum level specified in the IEC 61000-4-2 international standard (±30-kV Contact, ±30-kV Airgap). The low dynamic resistance and low clamping voltage help protect systems against transient events. This protection is key in safety systems that require a high level of robustness and reliability.
