LM193JAN
  • LM193JAN
  • LM193JAN
  • LM193JAN

LM193JAN

ACTIVE

Low Power Low Offset Voltage Dual Comparator

Texas Instruments LM193JAN Product Info

1 April 2026 5

Parameters

Number of channels

2

Output type

Open-collector, Open-drain

Propagation delay time (µs)

0.7

Vs (max) (V)

36

Vs (min) (V)

2

Rating

Military

Iq per channel (typ) (mA)

0.4

Vos (offset voltage at 25°C) (max) (mV)

5

Rail-to-rail

In to V-

Operating temperature range (°C)

-55 to 125

Input bias current (±) (max) (nA)

100

VICR (max) (V)

34.5

VICR (min) (V)

0

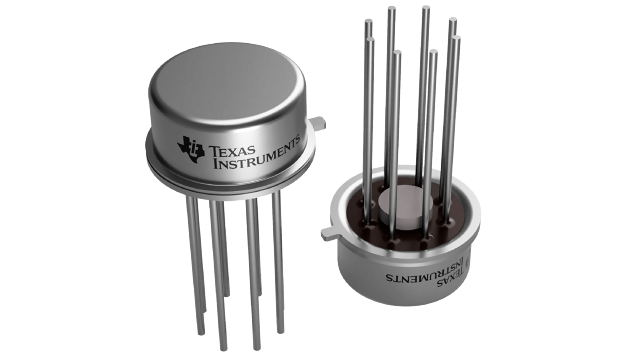

Package

TO-CAN (LMC)-8-80.2816 mm² 8.96 x 8.96

Features

  • Wide Supply
    • Voltage Range: 5.0VDC to 36VDC
    • Single or Dual Supplies: ±2.5VDC to ±18VDC

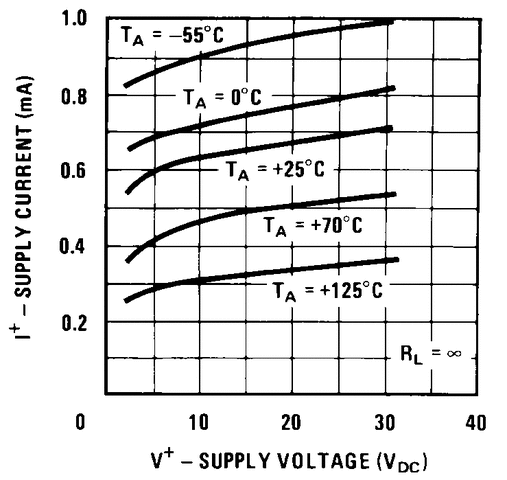

  • Very Low Supply Current Drain (0.4 mA) — Independent of Supply Voltage
  • Low Input Biasing Current: 25 nA typ
  • Low Input Offset Current: ±3 nA typ
  • Maximum Offset Voltage +5mV Max @ 25°C
  • Input Common-Mode Voltage Range Includes Ground
  • Differential Input Voltage Range Equal to the Power Supply Voltage
  • Low Output Saturation Voltage,: 250 mV at 4 mA typ
  • Output Voltage Compatible with TTL, DTL, ECL, MOS and CMOS Logic Systems

All trademarks are the property of their respective owners.

  • Wide Supply
    • Voltage Range: 5.0VDC to 36VDC
    • Single or Dual Supplies: ±2.5VDC to ±18VDC
  • Very Low Supply Current Drain (0.4 mA) — Independent of Supply Voltage
  • Low Input Biasing Current: 25 nA typ
  • Low Input Offset Current: ±3 nA typ
  • Maximum Offset Voltage +5mV Max @ 25°C
  • Input Common-Mode Voltage Range Includes Ground
  • Differential Input Voltage Range Equal to the Power Supply Voltage
  • Low Output Saturation Voltage,: 250 mV at 4 mA typ
  • Output Voltage Compatible with TTL, DTL, ECL, MOS and CMOS Logic Systems

All trademarks are the property of their respective owners.

Description

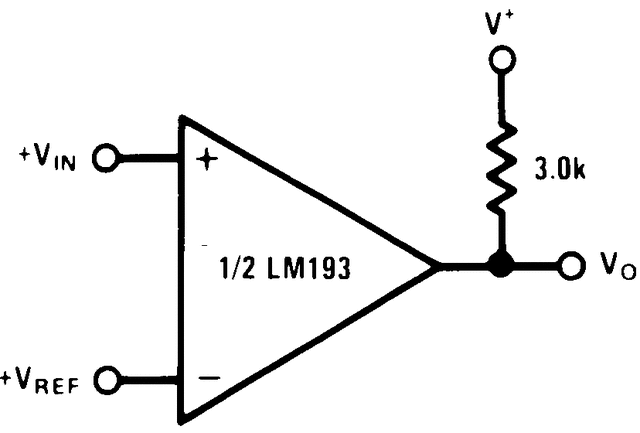

The LM193 series consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.

Application areas include limit comparators, simple analog to digital converters; pulse, squarewave and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates. The LM193 series was designed to directly interface with TTL and CMOS. When operated from both plus and minus power supplies, the LM193 series will directly interface with MOS logic where their low power drain is a distinct advantage over standard comparators.
